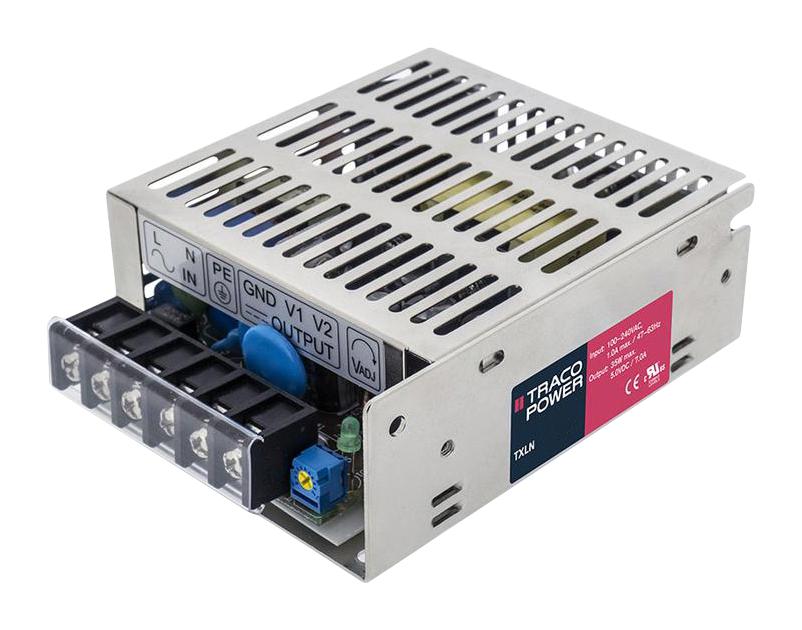

TRACO POWER TXLN035115 Power Supply
The TXLN 035 series features compact, durable power supplies ideal for cost-sensitive projects. With a low-profile metal case, screw terminal connections, universal input (88-264VAC), and efficiency up to 84%, these units are convection-cooled for quiet operation. They meet EMC standards, EN 61000-6-3, EN 61000-6-1, and safety standards IEC/EN/UL 62368-1. Protection features include short circuit, overvoltage, overload protection, and a 3-year warranty. Designed for reliable operation from -20°C to +70°C, their aluminum housing ensures excellent heat dissipation. Suitable for various industrial and control applications, delivering stable power with PWM switching at 58-72kHz.
TRACO POWER TXLN035115 Power Supply Specifications:
- Output Power: 36 W
- Output Voltage: 15 VDC
- Output Current: 2,400 mA
- Input Voltage: 88 - 264 VAC, 125 - 375 VDC
- Input Frequency: 50 - 63 Hz
- Efficiency: Up to 84%
- Isolation Voltage: 3,000 VAC (input to output), 1,500 VAC (input to case/PE), 500 VAC (output to case/PE)
- Ripple and Noise: 150 mVp-p max. (20 MHz BW)
- Operating Temperature: -20°C to +70°C
- Cooling Method: Natural convection
- Switching Frequency: 58 - 72 kHz (PWM)
- Protection: Short circuit, overvoltage, overload
- Safety Standards: IEC/EN/UL 62368-1, pollution degree 2
- Housing Material: Aluminum
- Housing Dimensions: 80 x 25 x 30 mm
- Connection: Screw terminal
- Weight: Approx. 340 g
- Compliance: EN 61000-6-3, EN 61000-6-1, REACH, RoHS
Buy the Traco Power Series TXLN035115: 35 Watt Power Supply
Secure your Traco Power Series TXLN035115 15V power supply online today and experience dependable, high-efficiency power for your industrial, automation, or control projects. With easy screw terminal connections, convection cooling, and full compliance with safety standards, this 35-watt unit offers robust protection features including overvoltage, overcurrent, and short circuit protections. Perfect for enclosure mounting in environments from -20°C to +70°C, its aluminum housing ensures durability. Purchase now to ensure seamless power delivery and expert support for your critical applications.
Order your Traco Power Series TXLN035115 15V power supply today and ensure reliable, efficient power for industrial and control systems.
