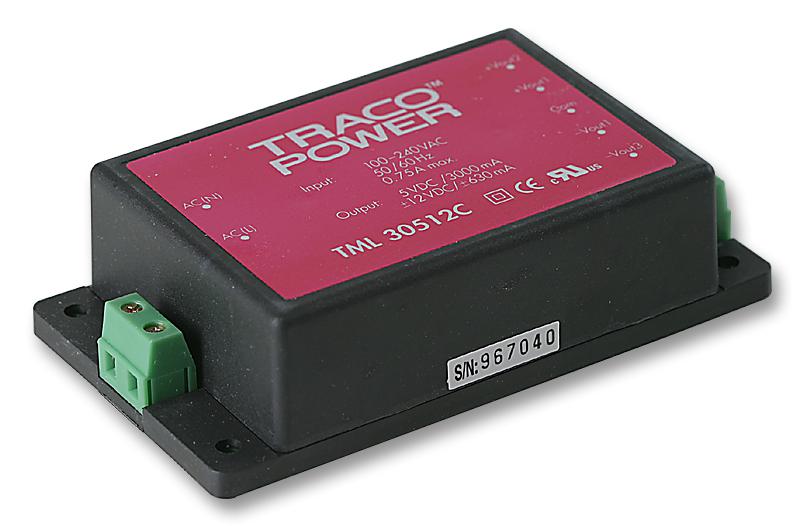

TRACO POWER TML30512C Industrial Power Module
The TML30512C is a high-performance AC/DC power module delivering 5 VDC at 3000 mA, designed for industrial and embedded electronic applications. It features a fully encapsulated plastic case with both PCB and chassis mounting options, offering excellent reliability in space-critical environments. Certified to international safety standards, with low ripple and noise, it provides a robust solution for industrial automation, control systems, and instrumentation. The module operates over a wide input voltage range of 85-264 VAC and 47-440 Hz, with high efficiency and low power dissipation, ensuring durability and consistent performance in demanding conditions.
TRACO POWER TML30512C Industrial Power Module Specifications:
- Input Voltage Range: 85-264 VAC, 47-440 Hz
- Output Voltage: 5 VDC
- Output Current: 3000 mA
- Power Output: 15 Watt
- Efficiency: 72-80%
- Ripple and Noise: <1.5% Vout
- Operating Temperature: -25°C to +60°C, derating above 50°C
- Storage Temperature: -40°C to +85°C
- Isolation Voltage: 3000 VAC (Input/Output)
- Short Circuit Protection: Yes, hiccup mode
- Case Material: Plastic resin with fiberglass, UL 94-VO flammability
- Dimensions: Approx. 112.0 x 44.0 x 25.0 mm
- Regulation (Load): 1.0 %
- Regulation (Line): 0.3 %
- Certifications: UL 60950-1, CSA, IEC/EN 60950-1
- MTBF: >660,000 hours
Buy the TracoPower TML30512C – Reliable 5V Power Supply for Industrial Applications
Secure your industrial electronics with the TracoPower TML30512C power supply module, offering 5V at 3000mA with wide input range, high efficiency, and proven safety certifications. Its compact design makes it ideal for space-critical automation, control, and instrumentation systems. Featuring low ripple and noise, high reliability, and short circuit protection, this module ensures long-term durability in demanding environments. Buy online today to provide your critical systems with a trusted power source that guarantees consistent, safe operation in industrial applications.
Order your TracoPower TML30512C industrial power module today and ensure your projects benefit from dependable, high-efficiency power solutions.
