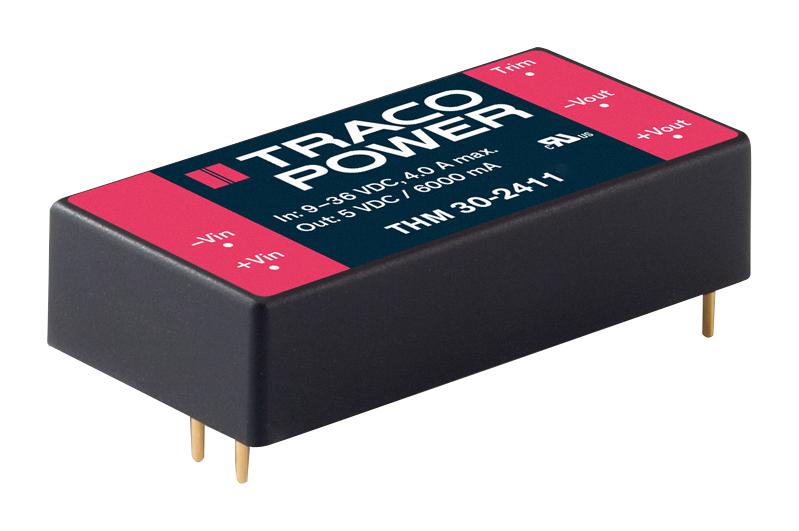

TRACO POWER THM304811 Medical DC/DC Converter
The THM 30 Series offers reliable 30 Watt DC/DC converters in a compact 2 x 1-inch plastic case with a wide 2:1 input voltage range, reinforced 5000 VACrms isolation, and low leakage current. These medical-grade power supplies meet IEC/EN/ES 60601-1 standards for 2xMOPP, supporting operating temperatures from -40°C to +80°C and altitude up to 5000 meters. They feature high efficiency up to 90%, excellent EMC immunity, and overcurrent protection, making them ideal for medical, transportation, and industrial applications requiring safety, durability, and consistent power delivery.
TRACO POWER THM304811 Medical DC/DC Converter Specifications:
- Casing material: non-conductive plastic
- Isolation voltage: 5000 VACrms reinforced
- Input voltage range: 5.0 VDC to 48 VDC (various models)
- Output voltage options: 5 V, 12 V, 15 V, 24 V (single and dual outputs)
- Output current: up to 3000 mA depending on model
- Efficiency: up to 90%
- Temperature range: -40°C to +80°C
- Leakage current: less than 2.5 pA
- Protection: overcurrent (150%), overvoltage, short-circuit
- Surge voltage: up to 100 V max.
- Dimensions: 2 x 1 inches (51 x 25.4 mm)
- Operating altitude: up to 5000 meters
- Soldering temperature: max 265°C for 10 seconds
- Compliance: IEC/EN/ES 60601-1, IEC 60601-1-2, RoHS, REACH
- Weight: approximately 32 grams
- Certifications: IEC 60601-1, IEC 60601-1-2, UL, CE
Buy the TracoPower Series THM 30 Medical DC/DC Converter: THM 30-4811
Experience the high reliability and safety of the TracoPower Series THM 30-4811 medical-grade DC/DC converter. Designed for medical, industrial, and transportation applications, it features reinforced 5000 VACrms isolation, high efficiency up to 90%, and an extended temperature range from -40°C to +80°C. Compact and lightweight at just 32 grams, it supports up to 3000 mA output current and complies with IEC 60601-1 standards, ensuring safety and performance in critical environments. Purchase online now for quick delivery and peace of mind.
Buy TracoPower THM 30-4811 medical-grade DC/DC converter now and experience unmatched reliability, safety, and performance for demanding applications.
Frequently Asked Questions
Where can I buy TRACO POWER THM304811?
You can click on the BUY or RFQ button to purchase THM304811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM304811?
You can download the THM304811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM304811?
TRACO POWER
