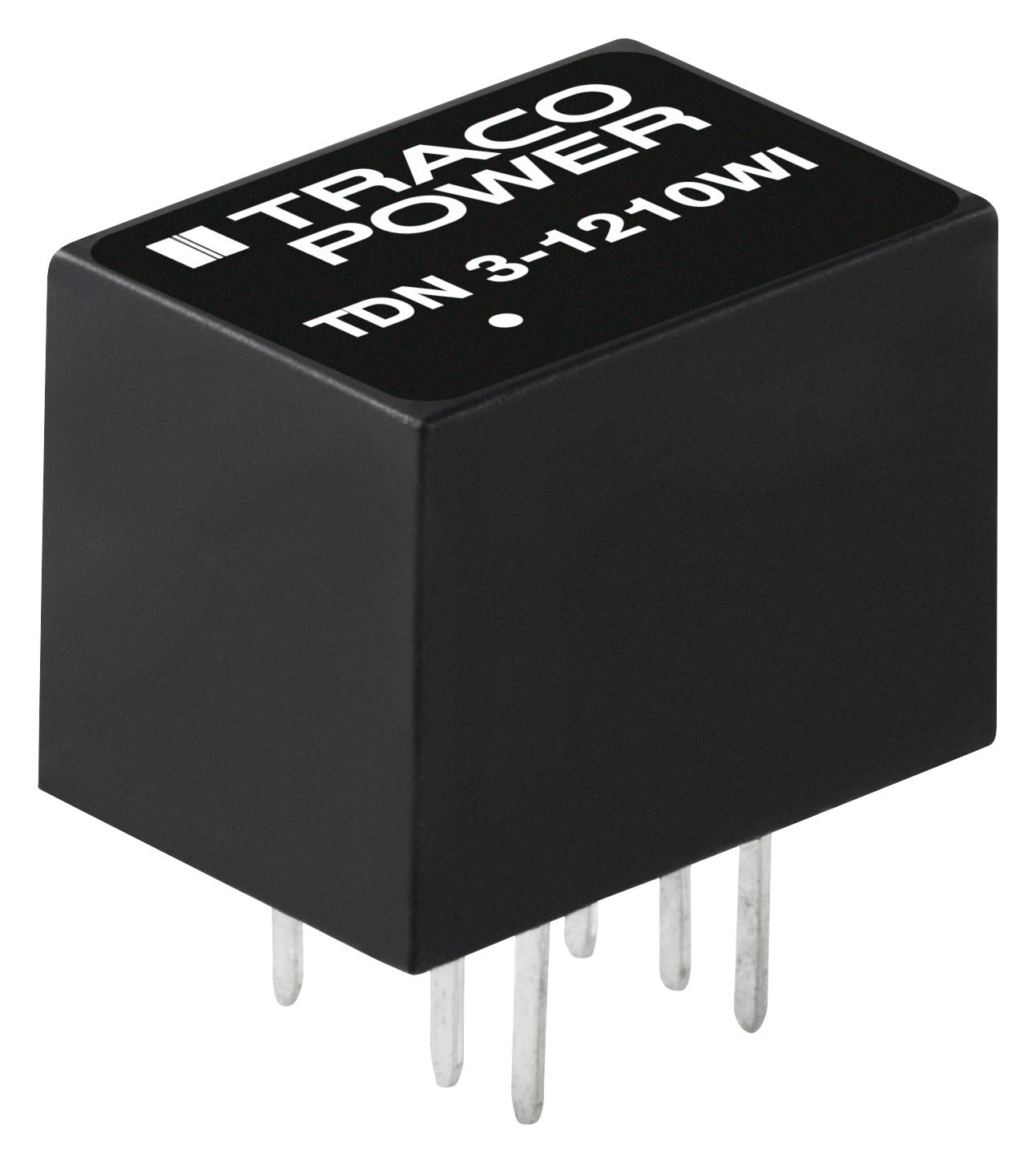

TRACO POWER TDN32411WI DC/DC Converter
The TDN 3WI series offers a compact 3 Watt DC/DC converter with fully regulated outputs, ideal for space-constrained projects. Featuring an ultra-compact DIP package measuring 13.2 x 9.1 x 10.2 mm, it provides 1/0-isolation of 1600 VDC, ensuring safety and reliability. Operating efficiently from -40°C to +70°C without derating, it includes short circuit protection, remote On/Off functionality, and compliance with UL 62368-1 standards. Suitable for industrial applications needing stable power with high isolation and minimal space consumption.
TRACO POWER TDN32411WI DC/DC Converter Specifications:
- Input voltage range varies per model, typically 3.3 VDC to 48 VDC
- Output voltage options include 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 18-75 VDC
- Maximum output current ranges from 125 mA to 700 mA depending on model
- Isolation voltage (O isolation): 1600 VDC (60 sec)
- Operating temperature: -40°C to +70°C without derating
- Efficient operation with typical efficiencies up to 84%
- Short circuit protection with automatic recovery
- Dimensions: 13.2 x 9.1 x 10.2 mm, DIP package
- Complies with IEC/EN/UL 62368-1 safety standards
- Operating frequency: minimum 100 kHz, pulse frequency modulation
Buy the Buy Traco Power TDN 3WI Series Part Number TDN32411WI Online
Order the Traco Power TDN32411WI online today to benefit from its compact design, high isolation voltage of 1600 VDC, and reliable regulation for demanding industrial applications. This 3 Watt converter features efficient performance from -40°C to +70°C without derating, short circuit protection, remote On/Off, and UL 62368-1 compliance. Perfect for space-constrained environments needing stable power solutions with minimal electromagnetic interference and excellent durability. Purchase now for fast delivery and long-lasting dependable power.
Get Traco Power TDN32411WI today—compact, reliable, 3 Watt power supply ideal for industrial automation and embedded systems.
Frequently Asked Questions
Where can I buy TRACO POWER TDN32411WI?
You can click on the BUY or RFQ button to purchase TDN32411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDN32411WI?
You can download the TDN32411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDN32411WI?
TRACO POWER
