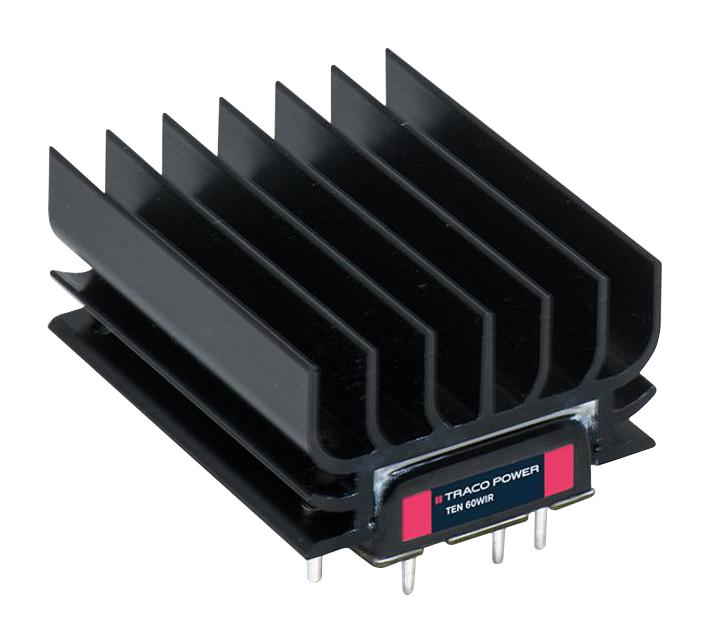

TRACO POWER TEN607222WIR Railway Power Converter
The TEN 6OWIR is a rugged 60 Watt railway-approved DC/DC converter featuring a compact 2”x1” metal package, wide 4:1 input voltage range of 9-36, 18-75, 36-160 VDC, high efficiency up to 92%, and EN 50155 and EN 61373 railway approval. It includes an adjustable output, remote On/Off, 3,000 VDC I/O isolation, and operates in temperatures from -40°C to +90°C. Designed for railway and transportation applications, it offers reliable performance with minimal derating, meeting fire safety and EMI standards for industrial environments.
TRACO POWER TEN607222WIR Railway Power Converter Specifications:
- Input Voltage Range: 9-36, 18-75, 36-160 VDC
- Input Current at no load: 15 mA typ. for 24V, 48V, 110V models
- Surge Voltage: 50 VDC max. at 24V, 100 VDC max. at 48V, 200 VDC at 110V
- Isolation Voltage: 3,000 VDC input-to-output, input-to-case
- Output Power: 60 Watts
- Efficiency: Up to 92%
- Output Voltage Adjustment: ±10% to +20% for certain models, ±10% for others
- Output Voltage Accuracy: ≤ ±1%
- Voltage Regulation: 0.2% max. (input variation), 0.5% load regulation
- Ripple & Noise: 100–300 mVp-p depending on model
- Operating Temperature Range: -40°C to +90°C
- Case Temperature Limit: 115°C typ.
- Start-up Time: 30 ms typ.
- Short Circuit Protection: Continuous, auto-recovery
- Overvoltage Protection: 124–133% of Vout
- Remote On/Off: 3–12 VDC on, 0–1.2 VDC off
- Vibration: According to MIL-STD-810F and EN 61373
- Housing Material: Copper, with optional heatsink
Buy the Traco Power TEN 6OWIR – Reliable Railway Power Converter for Industrial Applications
Purchase the Traco Power TEN 6OWIR railway-certified DC/DC converter online today. Designed for demanding industrial and transportation applications, it offers a 60 watt output, wide input voltage range, high efficiency, and rugged construction. Its compact size, adjustable output, remote On/Off, and enhanced EMI resistance ensure reliable performance. Perfect for railway and industrial systems, this converter complies with EN 50155, EN 61373, and fire safety standards. Order now to ensure durable, efficient power supply for your critical infrastructure needs.
Get Traco Power TEN 6OWIR today—built for precision, high efficiency, and long-lasting durability in railway and industrial systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN607222WIR?
You can click on the BUY or RFQ button to purchase TEN607222WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN607222WIR?
You can download the TEN607222WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN607222WIR?
TRACO POWER
