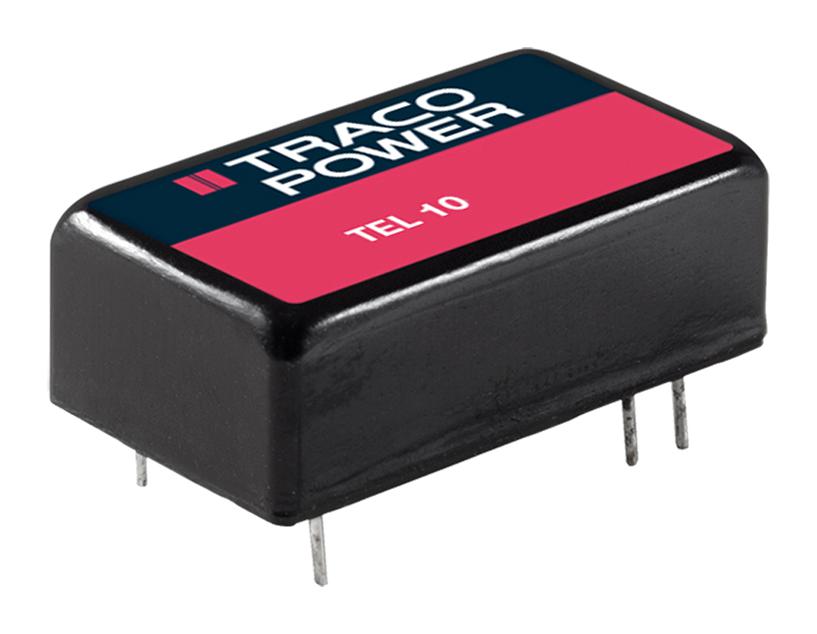

TRACO POWER TEL102422 DC/DC Converter
The TEL 10 series by Traco Power features highly compact, 10-watt DC/DC converters housed in DIP-16 metal casings with insulated bases, offering a power density of 3.83 W/cm². These converters support a wide 2:1 input voltage range and achieve efficiencies up to 88%, allowing operation at temperatures up to +70°C full load and +85°C at half load. Built-in filters reduce conducted emissions, making these models suitable for instrumentation, industrial electronics, and IT applications requiring space-efficient and reliable power solutions.
TRACO POWER TEL102422 DC/DC Converter Specifications:
- Power: 10 Watt
- Input Voltage Range: 9-18 V, 12 V, 24 V, 48 V, 72 V models
- Input Current at Full Load: 970 mA (72 V), 480 mA (24 V), 240 mA (48 V)
- Surge Voltage: 25 VDC (72 V models), 60 VDC (24 V models), 100 VDC (48 V models)
- Efficiency: Up to 88%
- Operating Temperature Range: -40°C to +88°C, full load up to +70°C
- Isolation Voltage: 1800 VDC (input to output), 707 VAC (input/output to case)
- Ripple & Noise: 60-96 mVp-p (varies by model)
- Capacitive Load: 200-2,600 pF depending on output voltage
- Protection: Short circuit, automatic recovery; output current limited to 192% max
- Compliance: EN 62368-1, UL 62368-1, IEC 62368-1, EN 55032 Class A emissions
- Weight: 65g
- Housing: Aluminum alloy, anodized, epoxy potting, tinned copper pins
Buy the Buy Traco Power TEL 10 Series Part Number TEL102422 Online
Purchase the Traco Power TEL 10 Series 10-watt DC/DC converter part number TEL102422 online today. Engineered for high efficiency and compact size, this converter supports wide input voltages and ensures stable power with built-in filters and robust protection features. Ideal for industrial, instrumentation, and IT electronic applications, it offers reliable operation from -40°C to +88°C, with automatic short circuit recovery, high insulation standards, and minimal noise. Securely buy online to benefit from fast delivery and technical support tailored to your power needs.
Get Traco Power TEL 10 Series part number TEL102422 today—built for high efficiency, space-saving design, and reliable industrial power applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEL102422?
You can click on the BUY or RFQ button to purchase TEL102422 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL102422?
You can download the TEL102422 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL102422?
TRACO POWER
