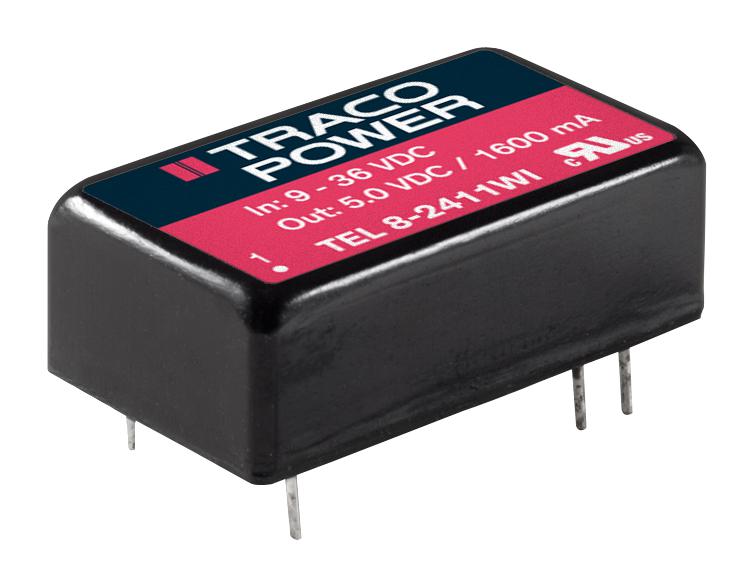

TRACO POWER TEL82422WI DC/DC Converter
The TEL 8WI series offers compact, 8 Watt DC/DC converters in DIP-16 metal casings, designed for space-critical industrial electronics, instrumentation, and IT applications. They feature an ultra-wide 4:1 input voltage range, high efficiency up to 86%, and built-in EN 55032 class A input filter for reduced electromagnetic interference. Operating from -40°C to +80°C, these converters provide protection against short circuits and overloads, making them ideal for reliable, economical power solutions in demanding environments.
TRACO POWER TEL82422WI DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 3.3 VDC to 24 VDC options
- Output Voltage: 3.3 V, 5 V, 9-36 V, 12 V, 15 V, 24 V, and dual outputs
- Output Current Max: 2000 mA (at 3.3V), 1600 mA (at 5V), 665 mA (at 12V), 535 mA (at 15V), 335 mA (at 24V), +12 V: 335 mA, +15 V: 265 mA, ±12 V: 335 mA, ±15 V: 265 mA
- Efficiency: Up to 86%
- Operating Temperature: -40°C to +80°C, derating above 70°C
- Protection: Short circuit, overload, under voltage shutdown at 8 VDC typical
- Ripple & Noise: 55 mVp-p
- Isolation Voltage: 1800 Vpk (input/output), resistance >1 Gohm
- Dimensions: Compact DIP-16, casing material aluminium alloy, weight 6.1 g
- Switching Frequency: 370 kHz
- Compliance: IEC/EN 60950-1, UL 60950-1, RoHS, REACH
Buy the Traco Power TEL 8WI – Reliable DC/DC Converter for Industrial Applications
Purchase the Traco Power TEL 8WI series DC/DC converters online for reliable, compact power solutions suitable for industrial electronics, instrumentation, and IT. Featuring an ultra-wide input voltage range, efficiencies up to 86%, and built-in filters to reduce electromagnetic interference, these converters operate from -40°C to +80°C. They are protected against short circuits and overloads, ensuring dependable performance in space-constrained environments. Buying online ensures quick delivery and trusted quality for your critical applications.
Get Traco Power TEL 8WI today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEL82422WI?
You can click on the BUY or RFQ button to purchase TEL82422WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL82422WI?
You can download the TEL82422WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL82422WI?
TRACO POWER
