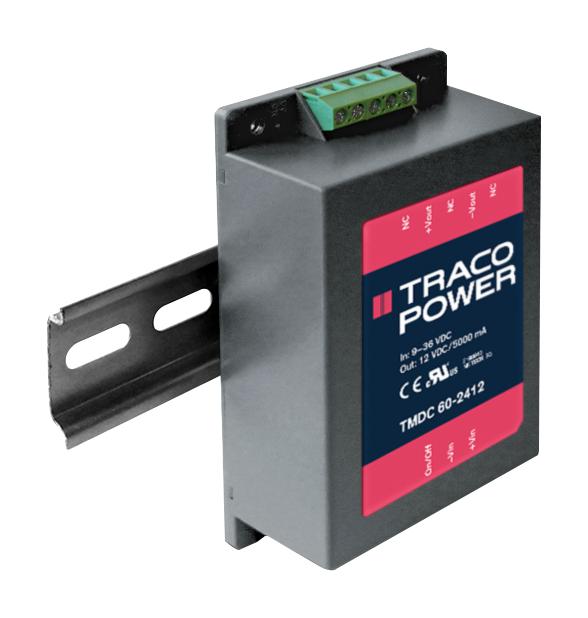

TRACO POWER TMDC604811 Industrial Power Converter
The TMDC 60-4811 from Traco Power is a high-performance 60W DC-DC converter module designed for industrial and power management applications. It features a fully encapsulated, low-profile plastic case with options for chassis mount with screw terminals or PCB mounting. The converter operates over a wide input voltage range of 18VDC to 75VDC, providing a regulated 5.1VDC output with a maximum current of 1200mA. It boasts an efficiency of up to 91%, a switching frequency of 285kHz, and does not require a minimum load. Key features include a 4:1 input voltage range, high I/O isolation of 2500VDC for 60 seconds, a power good indicator, input polarity protection, and remote on/off capability. It also offers protections against overload and short circuits, with EN 55024, EN 61000-4-2 (ESD), and UL/cUL 60950-1 (IEC 60950-1) approvals. Operating temperature range extends from -40°C to 85°C, and optional DIN rail mounting is available.
TRACO POWER TMDC604811 Industrial Power Converter Specifications:
- Input Voltage Range: 18VDC to 75VDC (nominal 18V-75V)
- Output Voltage: 5.1VDC
- Maximum Output Current: 1200mA
- Efficiency: Up to 91%
- Switching Frequency: 285kHz
- Isolation Voltage: 2500VDC for 60 seconds
- Operating Temperature: -40°C to 85°C
- No Minimum Load Required
- UL / cUL 60950-1 / IEC 60950-1 Certified
- Electromagnetic Compatibility: EN 55024, EN 55032 Class A
- Input Polarity Protection, Remote On/Off, Power Good Indicator
- Case Material: Fully encapsulated plastic
- Dimensions: 67.8 mm x 126.7 mm x 30 mm
- Weight: 300 g
- Supports optional DIN-Rail mounting
- Protection Features: Overload, Short circuit, Overvoltage
- Max Storage Temperature: 125°C
- Humidity Tolerance: 95% non-condensing
Buy the Buy Traco Power TMDC 60-4811 Part Number TMDC604811 Online
Purchase the Traco Power TMDC 60-4811 DC-DC converter online today for a dependable power solution optimized for industrial environments. This 60W converter offers high efficiency up to 91%, extensive input voltage range of 18VDC to 75VDC, and excellent electrical isolation of 2500VDC. Its compact, encapsulated design ensures durability and reliable operation across a temperature range from -40°C to 85°C. Featuring remote on/off, power good indicator, and overload protection, it's suitable for demanding power management tasks, providing seamless integration into industrial power supplies with optional DIN rail mounting available.
Order your Traco Power SeriesTMDC 60-4811 today and ensure reliable, high-efficiency power conversion for industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC604811?
You can click on the BUY or RFQ button to purchase TMDC604811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC604811?
You can download the TMDC604811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC604811?
TRACO POWER
