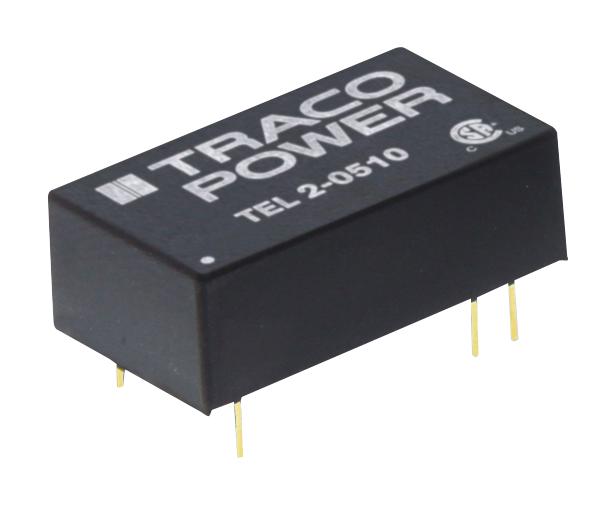

TRACO POWER TEL22421 DC/DC power converter
The TEL2 series of power converters by TracoPower provides compact, highly reliable 2-watt isolated DC/DC modules in a low-profile DIP-16 package, ideal for industrial and consumer electronics applications. With wide input voltage ranges up to 48 VDC, these converters feature regulated outputs, low ripple, noise, and robust shortcircuit protection. Operating seamlessly from -40°C to +75°C without derating, they comply with safety standards including UL, IEC, and CSA. The series offers various output voltages from 3.3 V to 45 V, ensuring efficient power conversion with efficiencies up to 81%. Suitable for space-constrained designs requiring high performance and safety compliance.
TRACO POWER TEL22421 DC/DC power converter Specifications:
- Input voltage range: 3.3 VDC to 48 VDC, with start-up at 4 VDC for 5 V models, 7 VDC for 12 V models, 12 VDC for 24 V models, and 24 VDC for 48 V models
- Input current at full load: 600 mA for 5 V models, 220 mA for 12 V, 110 mA for 24 V, 55 mA for 48 V
- Output voltage options: 3.3 V, 5 V, 12 V, 15 V, 45 V with maximum currents up to 500 mA
- Efficiency: Up to 81%, typical ripple and noise: 50 mVpk-pk at 20 MHz bandwidth
- Operating temperature range: -40°C to +75°C
- Isolation voltage: 1500 VDC for 60 seconds, resistance >1,000 MΩ
- Short circuit protection: Indefinite, automatic recovery
- Dimensions: approximately 16 mm x 15.24 mm x 7 mm, weight 5.1 g
- Safety standards: UL/cUL 60950-1, IEC/EN 60950-1, CSA 60950-1-03
- Certificate compliance: RoHS, UL, IEC, CSA
- Operating frequency: 300 kHz (PFM)
- Temperature coefficient: 0.02 %/K
- Capacitive load: varies from 47 pF to 2,200 pF depending on output model
- Soldering temperature: Max 265°C for 10 seconds
- Input protection: Reverse voltage protection up to 1 A.
Buy the TracoPower TEL2-2421 Reliable DC Converter for Industrial Applications
Enhance your electronic designs with the TracoPower TEL2 series DC/DC converters, offering 2-watt power in a space-saving DIP-16 package. These converters deliver stable, regulated outputs across wide input ranges, ensuring high efficiency and low ripple. With robust shortcircuit protection and comprehensive safety standards including UL, IEC, and CSA approvals, they are ideal for industrial, medical, and automation applications. Easy to integrate, reliable, and compliant with RoHS, these DC/DC modules are essential for modern, space-constrained power solutions. Purchase online today to ensure your projects meet high standards of performance and safety.
Get TracoPower TEL2-2421 today—compact, high-efficiency DC/DC converter built for industrial power supply needs.
Frequently Asked Questions
Where can I buy TRACO POWER TEL22421?
You can click on the BUY or RFQ button to purchase TEL22421 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL22421?
You can download the TEL22421 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL22421?
TRACO POWER
