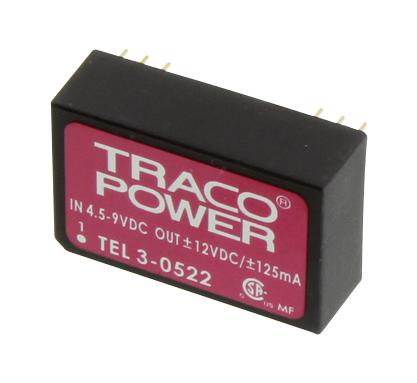

TRACO POWER TEL30522 DC/DC Converter Module
The TEL 3 series offers efficient, isolated 3 Watt DC/DC converters in a compact DIL-24 package, ideal for industrial and consumer electronics. These models feature wide 2:1 and 3:1 input voltage ranges, high efficiency up to 81%, and operate reliably from -40°C to +85°C, making them suitable for demanding applications. Designed with safety standards including UL 60950-1 and IEC/EN 60950-1, they provide 1500 VDC isolation, short-circuit protection, and low output noise, ensuring stable performance in space-constrained environments.
TRACO POWER TEL30522 DC/DC Converter Module Specifications:
- Input voltage range: 4.5-9.0 VDC
- Output voltage: 12 VDC
- Maximum output current: 250 mA
- Efficiency: 74%
- Isolation voltage (60 sec): 1500 VDC
- Operating temperature: -40°C to +85°C
- Ripple and noise: <60 mVpk-pk
- Regulation: 0.5% max. (input variation), 0.5% (single output), 1.0% (balanced dual output), 2.0% (unbalanced dual output)
- Short circuit protection: Automatic, indefinite recovery
- Dimensions: 10.2 mm x 30.5 mm x 12.0 mm
- Weight: 12 g
- Switching frequency: 300 kHz (typical)
- Certification: UL 60950-1, IEC/EN 60950-1, CSA
Buy the Tracopower Series TEL 3 3 Watt DC/DC Converter: TEL30522
Discover the reliable and efficient power solution with the Tracopower Series TEL 3 3 Watt DC/DC Converter. Designed with wide input voltage ranges from 4.5 to 36 VDC, it delivers up to 250 mA output current with high efficiency up to 81%. Its compact DIL-24 package supports operation from -40°C to +85°C, making it ideal for space-constrained environments in industrial, automation, and electronic applications. Certified for safety with UL and IEC standards, it offers 1500 VDC isolation, low ripple, and short-circuit protection, ensuring stable, safe power in various demanding settings.
Order your Tracopower Series TEL 3 3 Watt DC/DC Converter today and ensure reliable power delivery for your industrial and consumer electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL30522?
You can click on the BUY or RFQ button to purchase TEL30522 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL30522?
You can download the TEL30522 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL30522?
TRACO POWER
