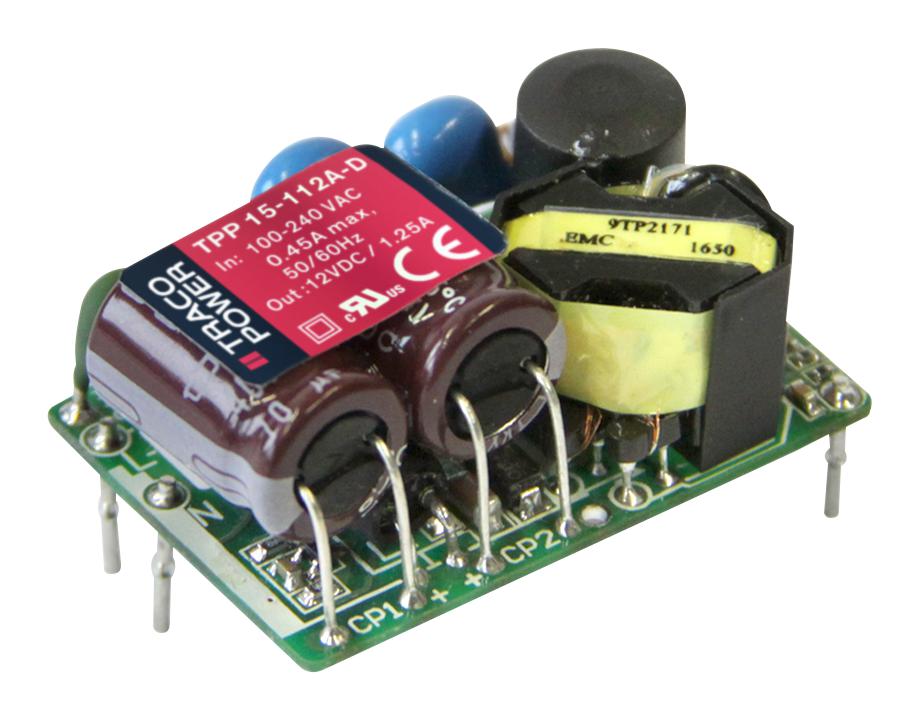

TRACO POWER TPP15112AD Medical Power Supply
The Traco Power TPP 15A-D Series is a compact, high-efficiency 15-watt open-frame power supply designed for medical applications. It features reinforced isolation according to IEC/EN/ES 60601-1 standards, low leakage current below 75 pA suitable for BF applications, and compliance with IEC 60601-1-2 4th edition EMC standards. Operating at altitudes up to 5000 meters with a temperature range of -40°C to +60°C, it offers adjustable output voltages, a regulation accuracy within 1%, and a robust design with a 5-year warranty, making it ideal for medical, industrial, and embedded systems.
TRACO POWER TPP15112AD Medical Power Supply Specifications:
- Output Power: 13.2W to 15W depending on model
- Output Voltage: 3.3 VDC to 48 VDC, adjustable ±10%
- Output Current: up to 4,000 mA for 3.3 V model, up to 313 mA for 48 V model
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC (no certification)
- Input Frequency: 47 - 63 Hz
- Efficiency: Up to 89%
- Protection Class: II, Reinforced Insulation
- Operating Temperature: -40°C to +60°C (up to 85°C with derating)
- Altitude: Up to 5000 meters
- Dimensions: 1.0" x 1.5" (25.4mm x 38.1mm)
- Leakage Current: <75 pA
- Safety Certifications: IEC/EN/ES 60601-1, UL 62368-1
- EMC Compliance: IEC 60601-1-2 4th edition, EN 55011, FCC Part 15
Buy the Traco Power Series Medical Power Supply: TPP 15A-D
Purchase the Traco Power TPP 15A-D Series online today to ensure your medical or industrial systems are powered reliably and safely. Designed with reinforced insulation and ultra-low leakage current, this 15-watt power supply complies with IEC 60601-1 standards, delivering high efficiency up to 89% and operating across a wide temperature range. Its compact 1.0" x 1.5" form factor makes it ideal for space-constrained applications, providing dependable performance, robust safety features, and a 5-year warranty. Order now for rapid delivery and support.
Get Traco Power TPP 15A-D today—built for medical precision and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TPP15112AD?
You can click on the BUY or RFQ button to purchase TPP15112AD from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP15112AD?
You can download the TPP15112AD datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP15112AD?
TRACO POWER
