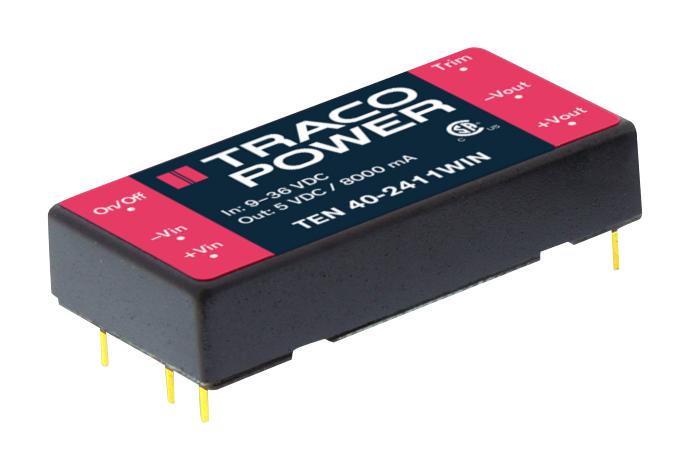

TRACO POWER TEN402411N High Power DC/DC Converter
The TEN 4ON Series consists of high-performance 40 W isolated DC/DC converters optimized for space-constrained applications in industrial electronics, communication, and mobile equipment. These compact modules deliver efficiencies up to 92%, feature adjustable output voltages, remote On/Off, and protections against short circuits, overloads, and overvoltage. With a wide operating temperature range of -40°C to +80°C and 1500 VDC isolation, they are ideal for distributed power architectures where reliability and space-saving design are critical, supported by a 3-year warranty and RoHS compliance.
TRACO POWER TEN402411N High Power DC/DC Converter Specifications:
- Power: 40 W
- Input voltage range: 3.3 VDC to 48 VDC (various models)
- Output voltage: adjustable +10% / -10% to +20%
- Output current: up to 8 A
- Efficiency: up to 92%
- Isolation Voltage: 1500 VDC
- Operating temperature: -40°C to +80°C
- Case material: Aluminum with epoxy potting
- Weight: 30 g
- Dimensions: approximately 50.8 mm x 25.4 mm x 11.0 mm
- Switching frequency: 285 kHz to 320 kHz
- MTBF: 328,000 hours at +25°C
- Short circuit protection: Yes, hiccup mode
- Overvoltage/Overcurrent protection: Yes
- Remote On/Off: Yes
- RoHS and Reach compliant
- Input fuse recommendation: 8 A to 20 A depending on model
- Humidity: 95% RH non-condensing
- Certification: IEC/EN 60950-1, UL 60950-1, CAN/CSA-C22.2
Buy the Traco Power TEN 40-1211N – Reliable DC-DC Converter for Industrial Applications
Purchase the Traco Power TEN 40-1211N online today and benefit from a high-efficiency, space-efficient DC-DC module designed for industrial, communication, and mobile electronics. Featuring adjustable voltage, remote On/Off, short circuit, overvoltage protections, and a wide operating temperature range, this 40 W converter ensures reliable performance in demanding environments. Its compact size makes it ideal for space-critical applications, and with RoHS compliance and a 3-year warranty, you can trust its durability and quality for your critical projects.
Buy Traco Power TEN 40-1211N now and experience unmatched reliability and performance with high efficiency and space-saving design.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402411N?
You can click on the BUY or RFQ button to purchase TEN402411N from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402411N?
You can download the TEN402411N datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402411N?
TRACO POWER
