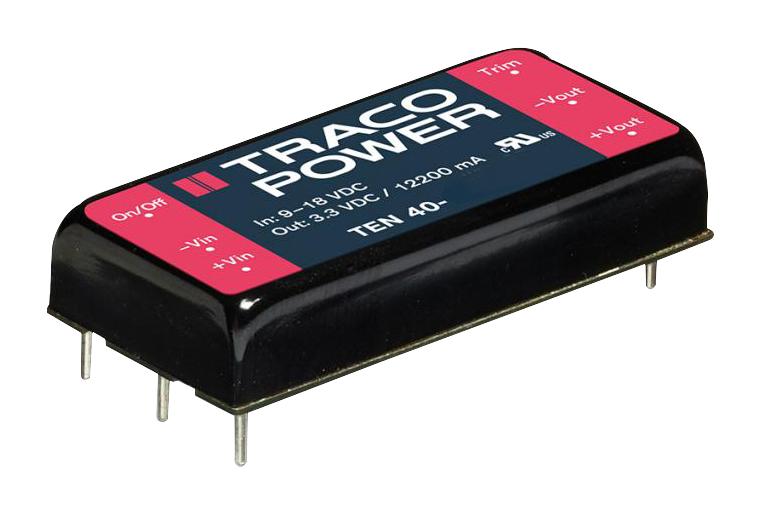

TRACO POWER TEN402413E Industrial DC/DC Converter
The TEN 40E series is a compact 40-watt DC/DC converter designed for industrial applications, featuring high efficiency up to 93%, wide input voltage range from 9V to 75V, and operating temperature from -40°C to +85°C. It offers 1600 VDC isolation, remote on/off, and protection against short circuits, overvoltage, and temperature extremes. Encased in a 2" x 1" metal package with a shielded design, it ensures reliable performance with certifications including IEC/EN/UL 62368-1, making it ideal for demanding industrial environments.
TRACO POWER TEN402413E Industrial DC/DC Converter Specifications:
- Power: 40 Watts
- Input Voltage Range: 9-75 VDC (wide 2:1 ratio)
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, -12V, -15V, -24V
- Input Current at No Load: 10-20 mA
- Surge Voltage: 25VDC (12V), 50VDC (24V), 100VDC (48V)
- Operating Temperature: -40°C to +85°C
- Efficiency: Up to 93%
- Isolation Voltage: 1600 VDC
- Dimensions: 2" x 1" x 0.35" (approximate)
- Protection: Overcurrent, Overvoltage, Overtemperature, Short Circuit
- Certifications: IEC/EN/UL 62368-1
- Remote On/Off control
- Safety: Functional insulation, 1131 VAC isolation test voltage
- Housing Material: Copper, Finish: Nickel-plated
- Cooling: Natural convection
- MTBF: 1,245,000 hours
- RoHS and REACH compliant
Buy the Buy Traco Power DC/DC Converter Part Number TEN402413E Online
Purchase the Traco Power TEN 40E series DC/DC converter online today and benefit from high efficiency up to 93%, wide input voltage ranges from 9V to 75V, and a compact 2" x 1" metal package. Designed for demanding industrial environments, this converter offers protection against overvoltage, overcurrent, and temperature extremes, ensuring reliable operation in temperatures ranging from -40°C to +85°C without derating. Certified according to IEC/EN/UL 62368-1 standards, it is ideal for versatile industrial and automation applications.
Buy Traco Power TEN 40E series DC/DC converter now and enjoy high efficiency, excellent temperature range, and reliable industrial performance.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402413E?
You can click on the BUY or RFQ button to purchase TEN402413E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402413E?
You can download the TEN402413E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402413E?
TRACO POWER
