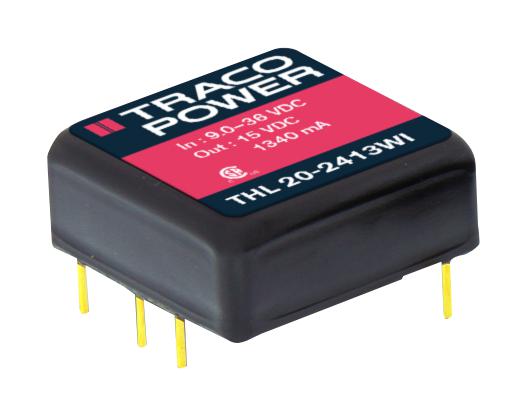

TRACO POWER THL202415WI dc-dc converter
The THL 20W series is a compact, high-efficiency dc-dc converter module with a metal encapsulated case measuring only 1.0”x 1.0”x 0.4”. It offers an ultra wide 4:1 input voltage range and delivers up to 20 watts of regulated output power. Suitable for space-constrained applications, it features an isolated baseplate, remote on/off, and adjustable output voltage. Designed for industrial, communication, and instrumentation uses, it operates reliably within -40°C to +75°C, with up to +85°C when mounted with a heat sink, ensuring durability in harsh environments.
TRACO POWER THL202415WI dc-dc converter Specifications:
- Dimensions: 1.0 inch x 1.0 inch x 0.4 inch
- Input voltage range: 3.3 VDC to 36 VDC, 48 VDC options
- Maximum output power: 20 Watts
- Output voltage: Adjustable (10% tolerance for single output)
- Efficiency: Up to 90%
- Isolation voltage: 1500 VDC
- Operating temperature: -40°C to +75°C, with optional heat sink up to +85°C
- Humidity: 95% non-condensing
- Switching frequency: Approximately 330 kHz
- Weight: 15 grams
- Case material: Aluminium alloy
- Soldering temperature: Max 260°C for 10 seconds
- Certifications: UL/cUL 60950-1, IEC/EN 60950-1, RoHS compliant
- Output ripple & noise: 75-150 mVp-p depending on model
- Remote On/Off: Control via 5-12 VDC, open or short circuit to disable
- MTBF: Greater than 451,600 hours
Buy the TracoPower THL202415WI – Reliable DC Converters for Industrial Applications
Purchase the TracoPower series THL202415WI online today to ensure your projects benefit from reliable, space-efficient power conversion. With high efficiency up to 90%, wide input voltage ranges, and a rugged aluminium case, this 20-watt dc-dc converter is ideal for industrial electronics, communication systems, and instrumentation. Its adjustable output voltage, remote on/off, and excellent thermal performance make it a versatile choice for space-constrained and demanding applications. Get dependable power conversion today to enhance your system’s performance and reliability.
Order your TracoPower series THL202415WI today and get a compact, high-efficiency converter designed for demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER THL202415WI?
You can click on the BUY or RFQ button to purchase THL202415WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL202415WI?
You can download the THL202415WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL202415WI?
TRACO POWER
