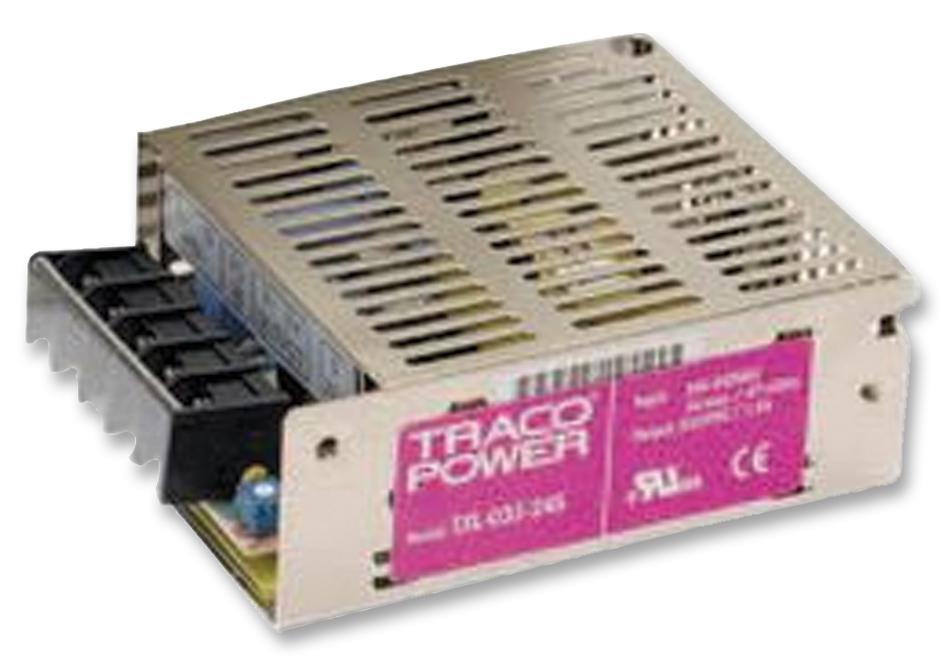

TRACO POWER TXL02548S Enclosed Power Supply
The TXL 025 Series is a high-efficiency, compact enclosed power supply offering up to 25 Watts with universal input voltage (85-264 Vac) and a robust metal casing. It features short circuit, overvoltage protection, and complies with stringent EMC and safety standards such as EN 61000-6-1, EN 61000-6-3, and UL 60950-1. Designed for cost-sensitive applications, it provides multiple output voltages, adjustable within 10%, low ripple, and noise levels, ensuring reliable power delivery in industrial and automation environments.
TRACO POWER TXL02548S Enclosed Power Supply Specifications:
- Input voltage range: 85-264 VAC, 47-63 Hz, 0.65 A max at full load at 100 VAC
- Output power: 25 W with multiple voltages (3.3V, 5V, 12V, 15V, 24V, 48V)
- Output current: up to 6.0A (for 3.3V), 5.0A (5V), 2.41A (12V), 1.7A (15V), 1.41A (24V), 0.57A (48V)
- Efficiency: Up to 88%, low ripple and noise levels (70-120 mVp-p depending on model)
- Overload protection: 105-180% of rated output current, automatic hiccup mode short circuit protection
- Operating temperature: -20°C to +70°C, derating above +50°C at 2.5%/K, natural convection cooling
- Isolation voltage: 3000 VAC input/output, 1500 VAC input/PE, 500 VAC output/PE, Humidity: 20-90% RH
- Dimensions: 65mm x 79mm x 30mm (LxWxH), weight: 0.18 kg, case material: nickel-plated steel
Buy the Traco Power Series TXL: 25 Watt Enclosed Power Supply
Order the Traco Power TXL02548S online today and experience reliable, efficient power for your industrial automation applications. This compact, high-efficiency power supply offers universal input voltage, multiple output options, and robust protections including short circuit and overvoltage safeguards. Designed for cost-sensitive projects, it ensures stable operation with low ripple and noise, meeting international safety and EMC standards. Perfect for control panels, machinery, and automation systems, this 25W power supply guarantees long-lasting durability and excellent performance in challenging environments.
Get Traco Power TXL02548S today—built for reliable, efficient power in industrial automation and control systems.
Frequently Asked Questions
Where can I buy TRACO POWER TXL02548S?
You can click on the BUY or RFQ button to purchase TXL02548S from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXL02548S?
You can download the TXL02548S datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXL02548S?
TRACO POWER
