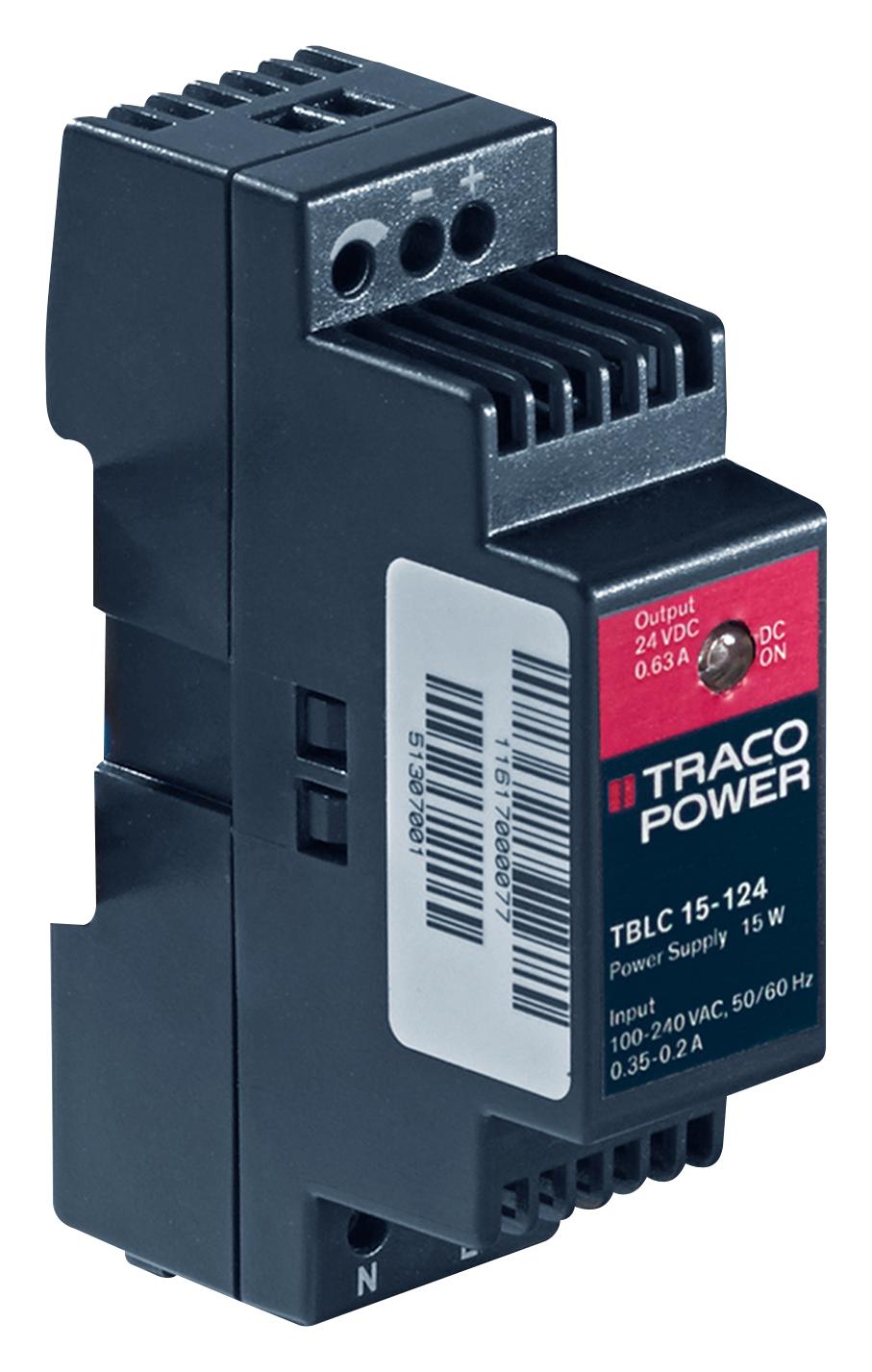

TRACO POWER TBLC15105 Industrial Power Supply
The TBLC Series power supplies by TRACO POWER are compact, efficient modules offering a wide input range of 85 to 264 VAC, suitable for industrial and residential applications. With outputs from 6W to 90W, they feature adjustable voltage, high efficiency, low standby power, and protection functions such as short circuit and overload protection. Designed for DIN rail mounting, these power supplies are ideal for distributed power in household appliances and industrial systems, complying with safety and EMC standards including UL 508 and UL 1310, ensuring reliable, safe operation in diverse environments.
TRACO POWER TBLC15105 Industrial Power Supply Specifications:
- Input voltage range: 85-264 VAC
- Input frequency: 47-63 Hz
- Output power: 6W to 90W
- Output voltage: 5V, 12V, 24V (adjustable)
- Output current: up to 12A depending on model
- Efficiency: up to 89%
- Operating temperature: -25°C to +70°C
- Protection: short circuit, overload
- Dimensions: width varies from 18mm to 90mm; depth 55mm
- Safety standards: UL 508, UL 1310, IEC/EN 60950-1
- Protection class II, IP20
- Mounting: DIN-rail or wall bracket
- Flicker-free operation, low ripple and noise
- Leakage current: 0.25 mA max.
Buy the TRACO POWER Series TBLC Power Supplies: TBLC15105
Enhance your system's reliability with the TRACO POWER TBLC15105 power supply. Designed for industrial and residential use, it features adjustable output voltage, high efficiency up to 89%, and protection against short circuits and overloads. Its compact size and DIN-rail mounting make installation seamless in panels or on walls. Certified for safety and EMC standards, this power supply ensures safe, consistent power with minimal ripple, supporting critical applications in household appliances, automation, and distributed power setups. Purchase online easily and ensure durable, efficient operation.
Get TRACO POWER TBLC15105 today—optimized for reliable industrial and residential power delivery with adjustable voltage and high efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER TBLC15105?
You can click on the BUY or RFQ button to purchase TBLC15105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TBLC15105?
You can download the TBLC15105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TBLC15105?
TRACO POWER
