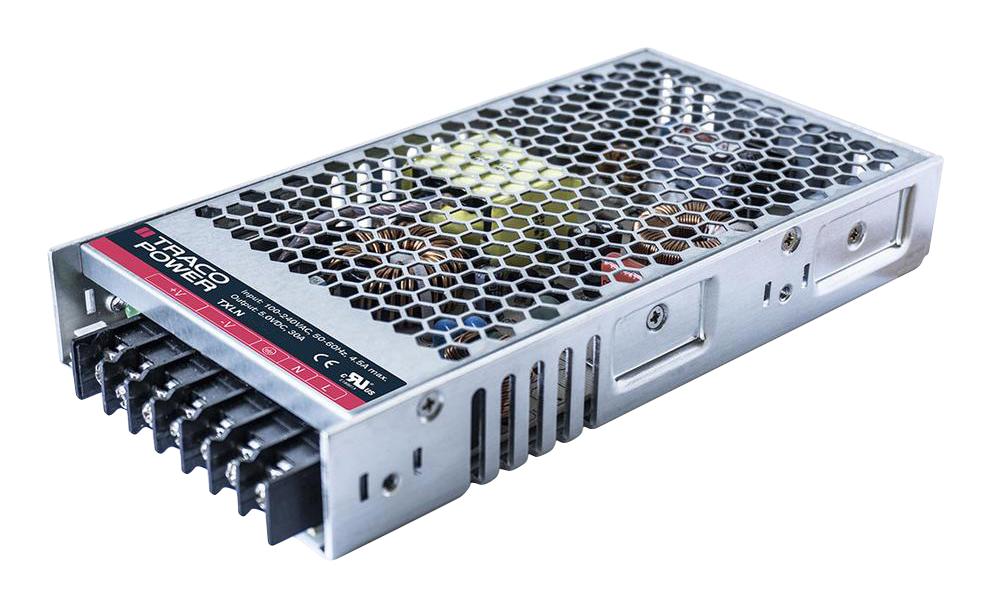

TRACO POWER TXLN150124 Industrial Power Supply
The TXLN 150 series is a family of compact, encased power supplies suitable for cost-sensitive applications. Featuring a low-profile aluminum casing and screw terminal block connections for easy installation, these power supplies support universal input voltage (85-264VAC) and meet European EMC standards as well as the Low Voltage Directive (LVD). They operate without a fan through convection cooling, achieving high efficiency up to 89%. The units comply with EN 61000-3-2 standards and are equipped with short circuit, overvoltage, and overload protection. Safety is certified according to IEC/EN/UL 62368-1 approvals. They come with a 3-year warranty, are prepared with connection to protective earth (PE), and rated for Pollution Degree 2 and Overvoltage Category II. Operating temperatures range from -30°C to +70°C, with a switching frequency between 61 kHz and 69 kHz (PWM).
TRACO POWER TXLN150124 Industrial Power Supply Specifications:
- Input Voltage: 85 - 264 VAC, 120 - 375 VDC (designed for, no certification)
- Input Frequency: 47 - 63 Hz
- Output Power: 150W
- Output Voltage: 24VDC (21.6V to 26V adjustable)
- Output Current: 6,300mA
- Efficiency: Up to 89%
- Protection: Short circuit, overvoltage, overload
- Isolation Voltage: Input to Output 3,000 VAC, Input to Case 1,800 VAC
- Operating Temperature: -30°C to +70°C
- Cooling Method: Natural convection
- Switching Frequency: 61-69 kHz
- Safety Standards: EN 62368-1, UL 62368-1
- Dimensions: Not specified
- Housing Material: Aluminum
- Weight: 560g
- Protection Class: Class I, connection to PE
- EMC Compliance: EN 61000-6-3, EN 61000-6-1, EN 61000-3-2
- Pollution Degree: 2
- Overvoltage Category: II
Buy the Buy Traco Power Power Supply Part Number TXLN150124 Online
Purchase the Traco Power TXLN 150 series power supply online to ensure a dependable power source for your industrial or automation projects. With a compact aluminum case, universal input support, and efficiency up to 89%, this power supply offers excellent performance for cost-effective applications. It includes safety features such as short circuit, overvoltage, and overload protection conforming to IEC, UL, and European standards. The unit operates without a fan through convection cooling and is certified for Pollution Degree 2 environments. Easy to install with screw terminal connections and backed by a 3-year warranty, this power supply guarantees reliable operation at temperatures from -30°C to +70°C.
Buy Traco Power TXLN150124 now and experience reliable performance across industrial applications with high efficiency and comprehensive safety features.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN150124?
You can click on the BUY or RFQ button to purchase TXLN150124 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN150124?
You can download the TXLN150124 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN150124?
TRACO POWER
