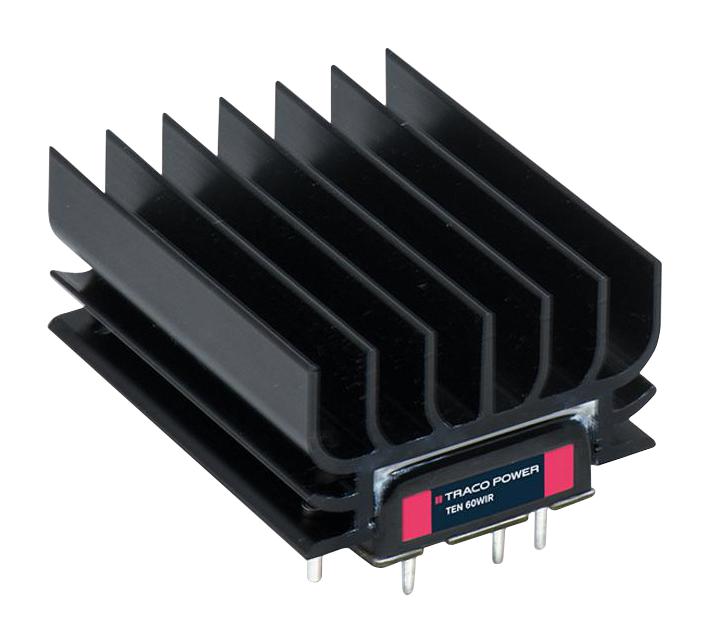

TRACO POWER TEN602415WIR Rugged Industrial Power Converter
The TEN 6OWIR Series is a rugged 60 Watt DC/DC converter designed for railway and industrial applications, offering a wide 4:1 input voltage range of 9-36V, 18-75V, or 36-160V. It features EN 50155 and EN 61373 approval, fire safety qualification per EN 45545-2, and operates reliably between -40°C to +70°C without derating. The converter offers high efficiency up to 92%, a 3,000 VDC isolation, adjustable output, remote on/off, and robust resistance against electromagnetic interference, shock, vibration, and thermal shock, making it ideal for demanding environments.
TRACO POWER TEN602415WIR Rugged Industrial Power Converter Specifications:
- Input Voltage Range: 9-36V, 18-75V, 36-160VDC
- Output Power: 60 Watts
- Efficiency: Up to 92%
- Input Isolation Voltage: 3,000 VDC
- Temperature Range: -40°C to +70°C (without derating)
- Operating Temperature: -40°C to +85°C
- Cooling: Natural convection
- Dimensions: 2” x 1” x 0.4” (approximately 50.8 x 25.4 x 10.16 mm)
- Isolation Resistance: 1 GΩ at 500 VDC
- Start-up Time: 30 ms typical
- Overvoltage Protection: Yes
- Short Circuit Protection: Yes, automatic recovery
- Remote On/Off: Yes
- Shock/Vibration Resistance: Meets MIL-STD-810F and EN 61373
- Fire Qualification: EN 45545-2
- Safety Standards: IEC/EN 62368-1, UL 62368-1
- Vibration Resistance: MIL-STD-810F
- Certifications: EN 50155, EN 61373
Buy the Buy TRACOPOWER TEN 6OWIR Part Number TEN602415WIR Online
Purchase the TRACOPOWER TEN 6OWIR series online today to ensure a reliable, high-performance power solution for railway, industrial, and transportation systems. This rugged 60W converter provides wide input flexibility from 9V to 160V DC, ensuring seamless operation in harsh environments. With EN approvals, 92% efficiency, adjustable outputs, remote control, and excellent shock/vibration resistance, it guarantees stable power delivery. Order now for quick delivery, peace of mind, and a durable power conversion component suitable for demanding applications.
Get TRACOPOWER TEN 6OWIR today—built for rugged railway and industrial applications with high efficiency and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TEN602415WIR?
You can click on the BUY or RFQ button to purchase TEN602415WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN602415WIR?
You can download the TEN602415WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN602415WIR?
TRACO POWER
