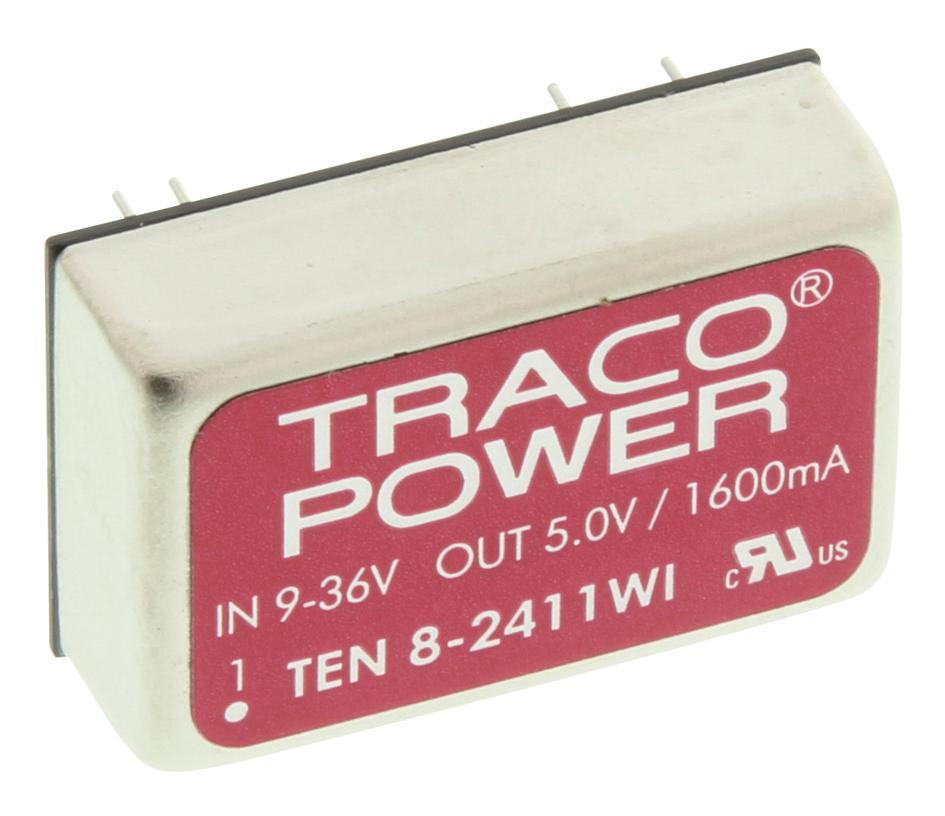

TRACO POWER TEN82411WI DC/DC Converter Module
The TEN 8WI series offers high-performance 8-watt DC/DC converter modules with ultra-wide 4:1 input voltage ranges of 9-36 VDC, 18-75 VDC, or 43-160 VDC. Featuring a DIP-24 metal package, these converters are suitable for demanding applications in railway, transportation, wireless networks, telecom, and industrial control systems. Certifications include EN 50155 approval for railway use, with high efficiency up to 88%, excellent EMI performance, and comprehensive protections such as remote ON/OFF, over-voltage, undervoltage lockout, and short-circuit. Operating temperatures span -40°C to +85°C, with a rugged design resistant to thermal shock and vibration, making them reliable in harsh environments.
TRACO POWER TEN82411WI DC/DC Converter Module Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 43-160 VDC
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 18-75 V models
- Output Current Max: 2,400 mA, 1,600 mA, 666 mA, 533 mA, up to 800 mA
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage (Input/Output): 1500 VDC
- Input Current (full load): 10 mA to 210 mA depending on model
- Ripple & Noise (20 MHz bandwidth): 50-75 mVp-p
- Switching Frequency: 300 kHz typical
- Protection: Over-voltage, under-voltage lockout, short circuit, over load
- Certifications: EN 50155, UL/cUL 60950-1, IEC/EN 60950-1
- Dimensions: Copper case, 18 g, Potting epoxy, DIP-24 footprint
- Case Temperature: Max +105°C, Power derating above +70°C
- Isolation Resistance: >1000 MΩ
- Soldering Temperature: Max 265°C for 10 seconds
Buy the Buy Traco Power DC/DC Converter Part Number TEN82411WI Online
Secure your supply chain with the Traco Power TEN82411WI 8-watt DC/DC converter. With ultra-wide input ranges, high efficiency up to 88%, and EN 50155 approval, it is perfectly suited for transportation, industrial control, and telecom applications. Its rugged design withstands temperature extremes from -40°C to +85°C, vibration, and thermal shock. Features include remote ON/OFF, over-voltage and short-circuit protections, ensuring reliable operation even in harsh conditions. Purchase online now for quick delivery of this dependable power solution that guarantees performance and durability.
Buy Traco Power TEN82411WI now and experience unmatched reliability and performance in rugged industrial and transportation environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEN82411WI?
You can click on the BUY or RFQ button to purchase TEN82411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN82411WI?
You can download the TEN82411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN82411WI?
TRACO POWER
