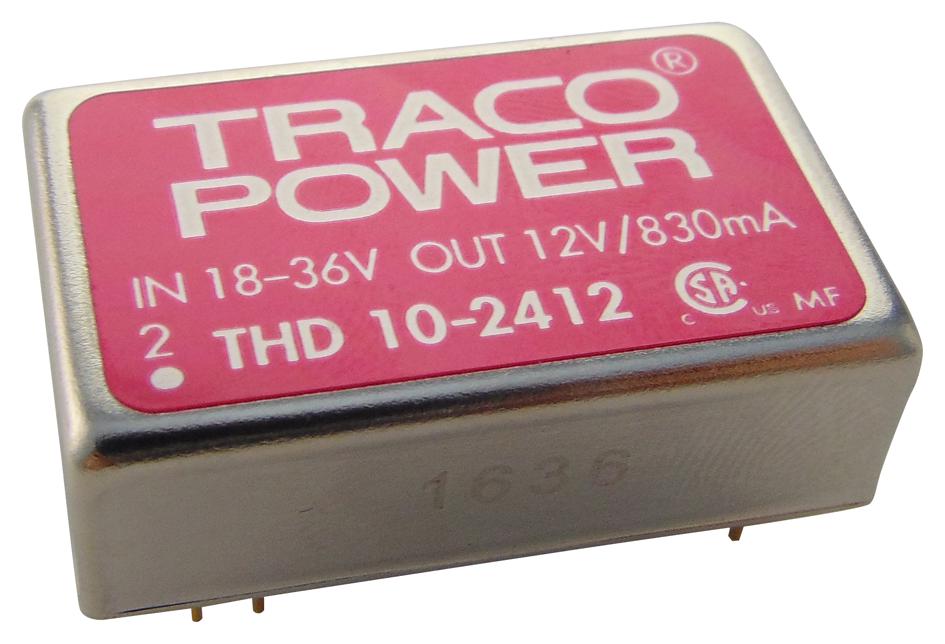

TRACO POWER THD102412 High-Performance DC-DC Converter
The THD-10 series offers high-performance, 10W isolated DC/DC converters housed in a compact DIL-24 package. Featuring a wide 2:1 input range, high efficiency up to 87%, and built-in protective features like overvoltage and short circuit protection, these converters are ideal for industrial electronics, instrumentation, and communication systems. They meet stringent EMI standards, operate from -40°C to +85°C, and rely on full SMD design with ceramic capacitors for reliability and long service life, suitable for space-constrained applications.
TRACO POWER THD102412 High-Performance DC-DC Converter Specifications:
- Power: 10 Watts
- Input Voltage Range: 18-36 VDC / 36-75 VDC / 24 VDC / 48 VDC models
- Output Voltage: 2.5 VDC, 3.3 VDC, 5.1 VDC, 12 VDC
- Output Current Max.: 3,000 mA, 2,000 mA, 835 mA
- Efficiency: Up to 87%
- Isolation Voltage: 1500 VDC
- Operating Temperature Range: -40°C to +85°C
- Ripple and Noise: 85 mVpk-pk
- Switching Frequency: 400 kHz
- Protection: Overvoltage, Short circuit, Reverse voltage
- Certifications: UL, EN 60950, IEC 60950
- Dimensions: Compact DIL-24 package, weight 173 g
- Case Material: Steel, nickel plated; Potting: Silicon rubber
Buy the Traco Power Series THD: DC/DC Converter 10 Watt Model
Enhance your electronic systems with the Traco Power THD-102412 high-performance 10W DC/DC converter. Designed for industrial, instrumentation, and communication applications, it offers high efficiency up to 87%, wide input range, and built-in protection. Its compact DIL-24 package ensures space-saving integration and long-term reliability, thanks to advanced materials and design. Get yours online today to benefit from fast delivery, trusted quality, and superior performance for your critical electronic projects.
Buy Traco Power THD-102412 now and experience unmatched reliability, high efficiency, and advanced protection features for industrial and communication applications.
Frequently Asked Questions
Where can I buy TRACO POWER THD102412?
You can click on the BUY or RFQ button to purchase THD102412 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THD102412?
You can download the THD102412 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THD102412?
TRACO POWER
