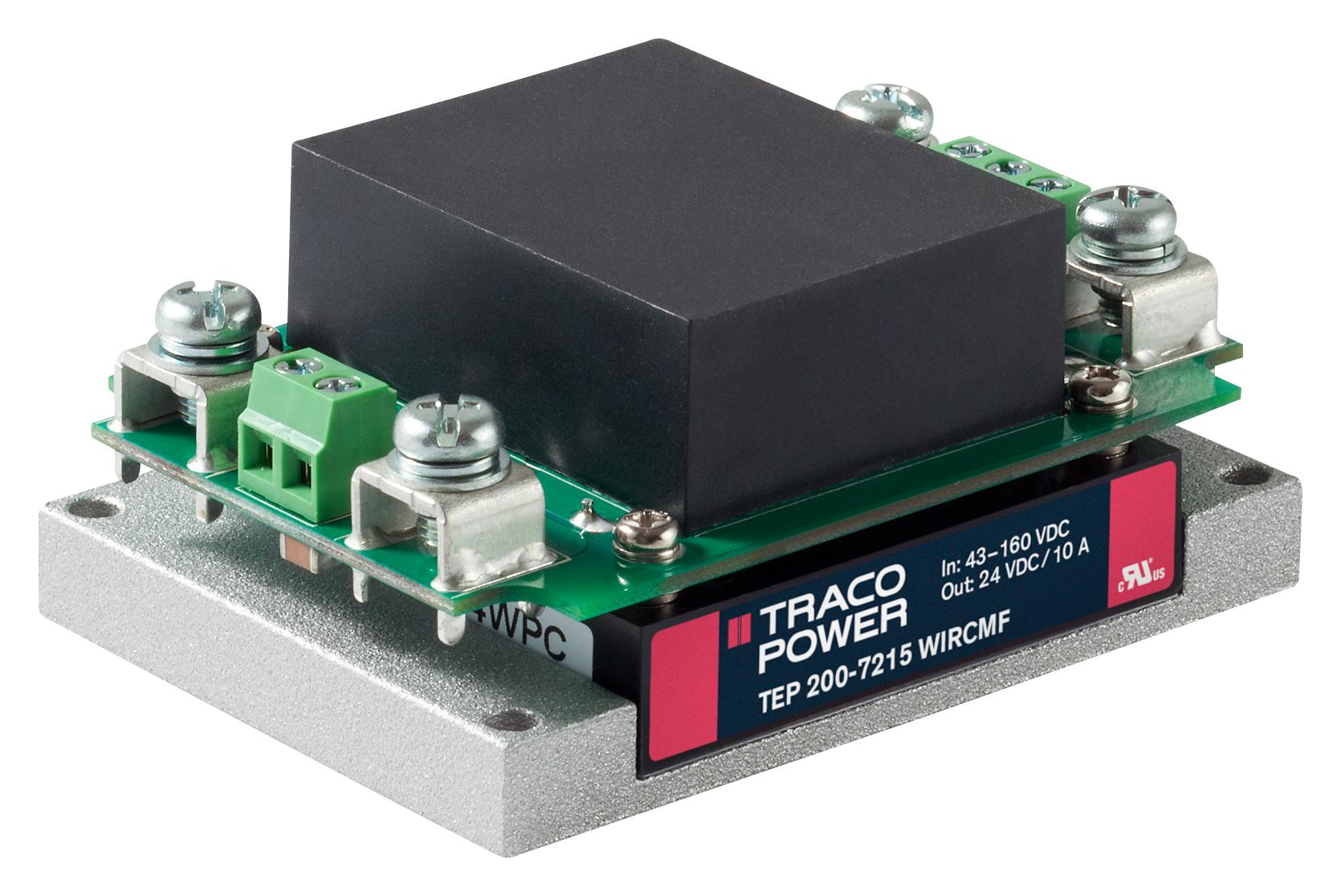

TRACO POWER TEP2002412WIRCMF DC/DC Converter
The TEP 200WIR Series provides high-performance isolated DC/DC converters with ultra-wide 4:1 input voltage ranges, including models with built-in EMI filters meeting EN 55032 class A. These chassis-mount modules deliver up to 91% efficiency, ensuring reliable power supply in industrial, railway, and telecom control systems. Featuring remote On/Off, adjustable output (+10/-20%), over-temperature, reverse voltage protection, and operating across -40°C to +75°C, they are designed for demanding environments. Their compact design, high MTBF of 300,000 hours, and compliance with safety standards make them suitable for diverse industrial power applications.
TRACO POWER TEP2002412WIRCMF DC/DC Converter Specifications:
- Input Voltage: 9-36 VDC, 18-75 VDC, 43-160 VDC, 12 VDC, 24 VDC, 48 VDC, 110 VDC models
- Output Voltage: 15 VDC, 24 VDC, 28 VDC, 48 VDC, 5 VDC, 3.3 VDC, adjustable +10%/-20%
- Output Current: Up to 75A depending on model
- Efficiency: up to 91%
- Isolation Voltage: 2250 VDC input/output, 1600 VDC input/case
- Operating Temperature: -40°C to +75°C, max case temperature +115°C
- Ripple & Noise: 100-300 mVp-p depending on model
- Switching Frequency: 250 kHz typ.
- Protections: Over temperature, reverse input, short circuit, over voltage
- Standards: EN 55032 class A, EN 50155, UL 60950-1, EN 45545-2 flammability
- MTBF: 300,000 hours at +70°C
- Dimensions: Varies, fitting chassis or DIN-rail mounting
- Certification: UL listed, RoHS compliant, Reach compliant
Buy the TRACOPOWER TEP2002412WIRCMF – Reliable DC/DC Converter for Industrial Applications
Secure your power needs with the high-efficiency, EMI-filtered, and railway-approved DC/DC converters from the TEP 200WIR Series. Designed for industrial, transportation, and telecom control systems, these modules offer adjustable output, extensive voltage ranges, and robust protections including reverse voltage, over temperature, and short circuit. With a user-friendly chassis mount and DIN-rail options, they ensure reliable operation even in demanding environments. Purchase online today and enhance your system's stability and safety with proven, high-quality power conversion technology.
Buy TRACOPOWER TEP2002412WIRCMF now and experience unmatched reliability and performance in industrial power conversion systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEP2002412WIRCMF?
You can click on the BUY or RFQ button to purchase TEP2002412WIRCMF from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEP2002412WIRCMF?
You can download the TEP2002412WIRCMF datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEP2002412WIRCMF?
TRACO POWER
