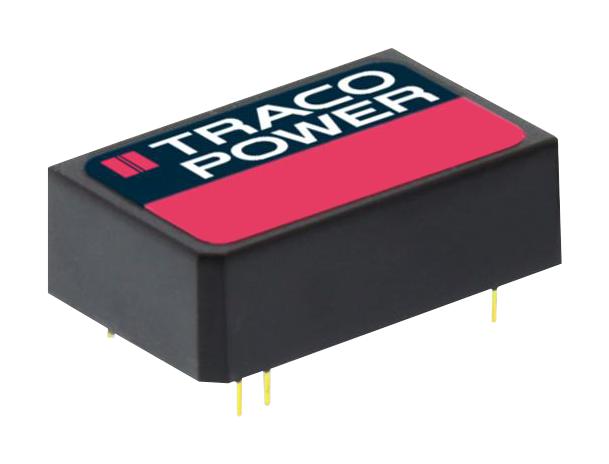

TRACO POWER TRI101223 High-Voltage Isolated DC/DC Converter
The TRI 10 series is a compact 10 Watt high isolation DC/DC converter with reinforced insulation capable of withstanding test voltages up to 9000 VDC. It features a wide input range of 9-75 VDC, high efficiency up to 88%, and integrated EN 55032 class A filtering. Designed for industrial, transportation, and instrumentation applications, it offers excellent transient immunity, low no-load power consumption, and robust overvoltage, overload, and short circuit protection. Its rugged design ensures reliable operation from -40°C to +85°C with derating, making it ideal for demanding environments.
TRACO POWER TRI101223 High-Voltage Isolated DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC
- Rated Power: 10 Watts
- Isolation Voltage: 7071 VDC (1s), 9000 VDC (60s)
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +85°C (with derating)
- Isolation Resistance: 10 GΩ typical at 500 VDC
- Input Current at Full Load (12V input): 960 mA
- Ripple and Noise: 50-70 mVp-p
- Start-up Time: 30-60 ms
- Protection: Overvoltage, overload, short circuit
- EMC Compliance: EN 55032, FCC Part 15
- Dimensions: Compact DIP-24 package
- Insulation System: Reinforced insulation
- Case Temperature Max.: 105°C
- Soldering Profile: Wave soldering at 260°C for 10 seconds
- Housing Material: UL rated plastic
Buy the TRACO POWER TRI 101223 – Reliable High-Voltage Isolation for Industrial Applications
Discover the TRACO POWER TRI 10 series, a robust 10 Watt high-isolation DC/DC converter designed for industrial, transportation, and instrumentation sectors. With its reinforced insulation capable of withstanding up to 9000 VDC, efficiency up to 88%, and universal input range of 9-75 VDC, it ensures dependable performance across harsh environments. Its compact DIP-24 package features integrated filtering, overvoltage protection, and excellent transient immunity, making it the optimal choice for demanding power conversion needs. Purchase online today for reliable, high-quality performance.
Get TRACO POWER TRI 10 series today—built for precision, high insulation, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TRI101223?
You can click on the BUY or RFQ button to purchase TRI101223 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI101223?
You can download the TRI101223 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI101223?
TRACO POWER
