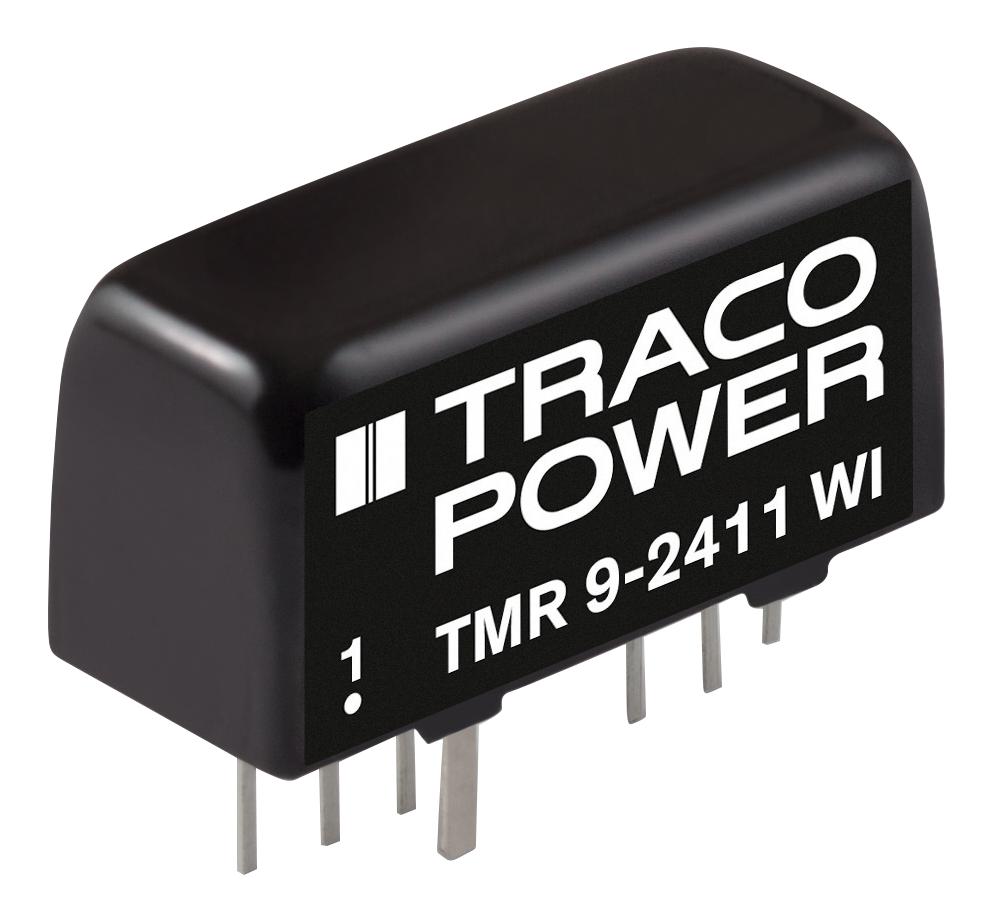

TRACO POWER TMR92419WI DC/DC Converter
The TMR 9WI series offers compact, high-efficiency isolated 9W DC/DC converters with ultra-wide 4:1 input voltage range, operating from -40°C to +85°C. They feature a SIP-8 metal or optional plastic case, remote On/Off, and short-circuit protection. Ideal for space-constrained applications like communications, instrumentation, and industrial electronics, these converters provide excellent performance with up to 89% efficiency and high reliability, making them suitable for various demanding environments with comprehensive safety and EMC compliance.
TRACO POWER TMR92419WI DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 24 VDC nominal, 48 VDC nominal with options
- Output Power: 9 Watts
- Output Voltage Options: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 48 V, ±5 V, ±12 V, ±15 V
- Output Current: Up to 2000 mA depending on model
- Efficiency: Up to 89%
- Isolation Voltage: 1600 VDC for 60 seconds
- Operating Temperature Range: -40°C to +85°C
- Case Material: Copper, optional plastic -P
- Dimensions: Approx. 20 x 15 x 10 mm for standard metal case, smaller for plastic options
- Weight: 59 g, 4.8 g for optional plastic case
- Switching Frequency: Typical 400-500 kHz
- Ripple & Noise: 50-75 mV peak-to-peak depending on model
- Short Circuit Protection: Continuous, auto-recovery
- Remote On/Off Control: Open/high impedance or 2-4 mA current
- Certifications: UL, IEC/EN 60950-1, RoHS, Reach
Buy the Buy Traco Power TMR 9WI Series Part Number TMR92419WI Online
Purchase the Traco Power TMR 9WI Series TMR92419WI DC/DC converter online now to benefit from compact size, high efficiency up to 89%, and wide input voltage range. Equipped with remote On/Off, short-circuit protection, and certified safety standards, this reliable module is ideal for demanding industrial, communication, and instrumentation applications. Enjoy quick delivery and comprehensive support by ordering online today to ensure your projects have robust and efficient power solutions that meet all regulatory requirements.
Order your Traco Power TMR 9WI Series TMR92419WI today and ensure reliable, space-saving power conversion for your communication and industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMR92419WI?
You can click on the BUY or RFQ button to purchase TMR92419WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR92419WI?
You can download the TMR92419WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR92419WI?
TRACO POWER
