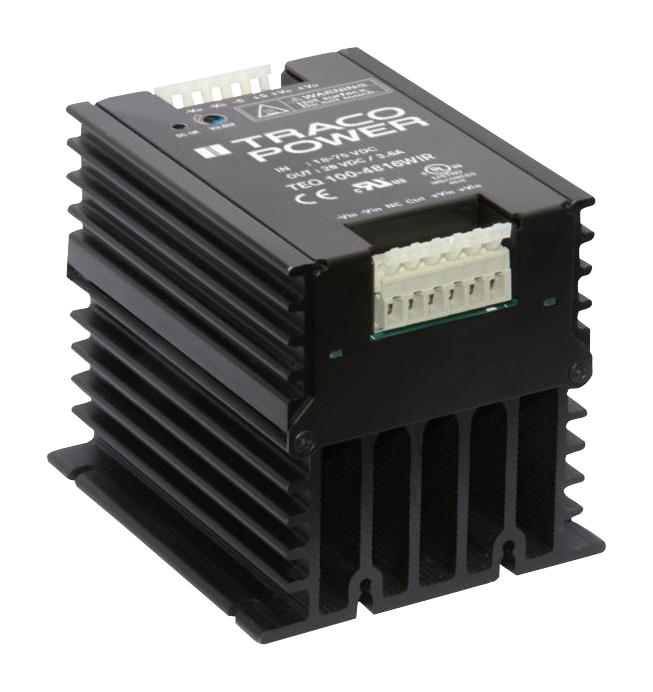

TRACO POWER TEQ1004816WIR industrial DC/DC converter
The TEQ 100WIR series from TracoPower features high-performance, isolated DC/DC converters with 100W output, rugged sealed metal case, and ultra-wide 4:1 input voltage range. Suitable for industrial and railway applications, they operate from -40°C to +105°C with natural convection cooling, offering high efficiency up to 90%. Key features include output voltage trimming, remote On/Off, UV lockout, soft-start, short circuit protection, and compliance with IEC/EN 60950-1 safety standards. These modules support nominal inputs of 24VDC, 48VDC, and 110VDC, with adjustable outputs of 12V, 24V, 28V, and 48V. They provide reliable operation in challenging environments, with excellent thermal performance and industrial safety certifications.
TRACO POWER TEQ1004816WIR industrial DC/DC converter Specifications:
- Casing material: aluminum
- Potting material: silicone (UL94V-0 rated)
- Weight: 800 g
- Input voltage: 12VDC, 24VDC, 48VDC, 110VDC nominal options
- Input current at no load: 25 mA (24V), 20 mA (48V), 10 mA (110V)
- Start-up voltage: 10V (24V models), 19V (48V models), 43V (110V models)
- Operating temperature: -40°C to +105°C (with derating above +85°C)
- Output voltage options: 12V, 24V, 28V, 48V
- Output current max.: 8.4A, 4.2A, 3.6A, 2.1A
- Efficiency: up to 90%
- Isolation voltage: 2250 VDC (I/O), 1600 VDC (input/case)
- Ripple and noise: up to 350 mVp-p at 20 MHz bandwidth
- Switching frequency: 250 kHz to 300 kHz
- Protection: overvoltage, short circuit, reverse input voltage, undervoltage lockout
- Certifications: IEC/EN 60950-1, UL 508, CSA, EN 50155
- Environmental: EN 61000-4-2 to EN 61000-4-6
- Humidity: 5–95% non-condensing
- MTBF: >711,000 hours
Buy the TracoPower TEQ 100WIR – Reliable DC-DC Converter for Industrial Applications
Order the TracoPower TEQ 100WIR series online today and benefit from high efficiency, rugged construction, and versatile input/output options. Designed for industrial and railway applications, these economical converters support wide temperature ranges and offer reliable, continuous operation. With advanced protection features including reverse voltage, overvoltage, and short circuit protection, plus compliance with essential safety standards, they are perfect for demanding environments. Choose TracoPower TEQ 100WIR for your project and enjoy quick, secure online purchasing with technical support and reliable delivery.
Get TracoPower TEQ 100WIR today—built for precision, robust in rugged industrial environments, and certified for railway safety standards.
