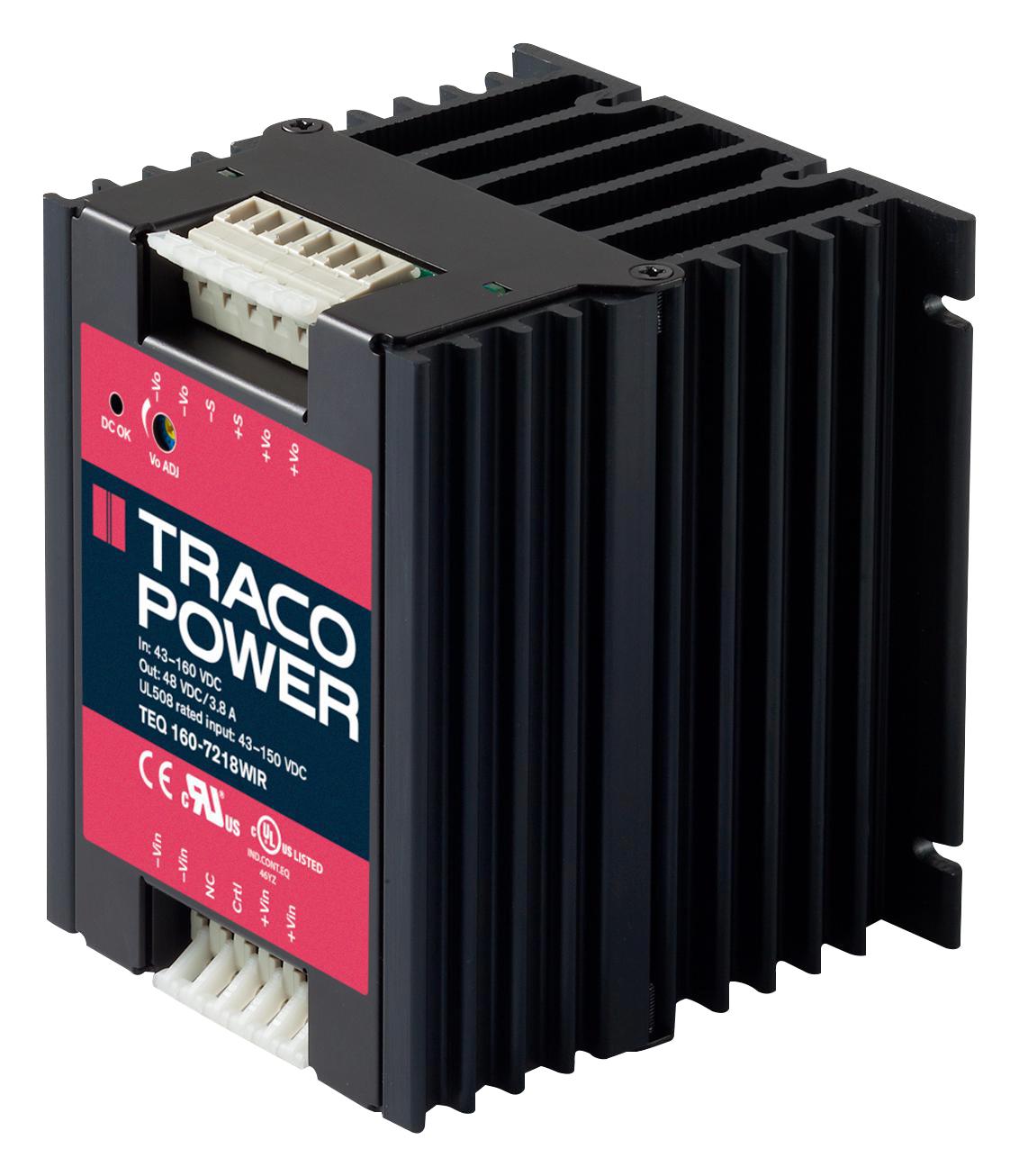

TRACO POWER TEQ1607216WIR Industrial Power Module
The TEQ 160WIR series from Traco Power consists of high-performance, isolated DC/DC converters rated at 160W. Encased in a rugged, sealed metal housing, these modules are ideal for industrial applications where PCB mounting is impractical, and chassis mounting is required. They feature an ultra-wide 4:1 input voltage range, reverse polarity protection, and comprehensive safety approvals including IEC/EN 60950-1, UL 508, CSA C22.2, and EN 50155 for railway use. The converters offer output voltage trimming, remote on/off, undervoltage lockout, soft-start, current limiting, overvoltage protection, and automatic short circuit recovery. They support various input voltages (48VDC/110VDC) and output voltages (12VDC, 24VDC, 28VDC, 48VDC) with maximum current ratings up to 15A. Efficiency reaches up to 90%, and the modules operate effectively over a temperature range from -40°C to 105°C. They are suitable for demanding applications including industrial control and railway systems, with low ripple and noise specifications.
TRACO POWER TEQ1607216WIR Industrial Power Module Specifications:
- Casing material: aluminium
- Potting material: silicone
- Weight: 800 g
- Input voltage: 12 VDC (9.6–13.2), 19–75 VDC, 48 VDC (38.4–52.8)
- Output voltages: 12 VDC, 24 VDC, 28 VDC, 48 VDC
- Maximum output current: 15A
- Efficiency: up to 90%
- Operating temperature: -40°C to +105°C (up to +75°C without derating)
- Isolation voltage: 2,250 VDC (input/output), 1,600 VDC (input/case)
- Ripple and noise: 125–350 mVp-p depending on model
- Protection features: overvoltage, short circuit, undervoltage lockout, remote on/off
- Switching frequency: 250 kHz
- Certifications: IEC/EN 60950-1, UL 508, CSA, EN 50155
- Physical: aluminium casing, sealed, weight 800 g
Buy the Traco Power TEQ1607216WIR – Reliable Power Supply Modules for Industrial Applications
Order the Traco Power TEQ1607216WIR module online today and benefit from high efficiency, robust construction, and universal input voltage ranging from 110V to 48V. Perfect for industrial control, railway systems, and applications demanding reliable power supplies. This sealed, rugged converter supports a wide temperature range and provides protections such as overvoltage, short circuit, and undervoltage lockout. Its modular design and low ripple characteristics make it ideal for demanding environments requiring stability and durability. Purchase now to ensure your system operates smoothly and efficiently.
Get Traco Power TEQ1607216WIR today—built for precision and long-lasting durability in industrial and railway systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ1607216WIR?
You can click on the BUY or RFQ button to purchase TEQ1607216WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ1607216WIR?
You can download the TEQ1607216WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ1607216WIR?
TRACO POWER
