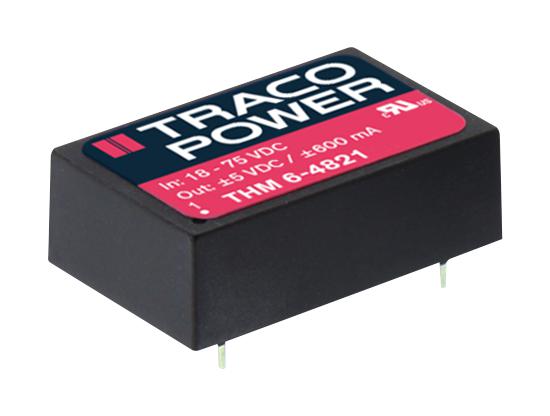

TRACO POWER THM64815 Medical DC/DC Converter
The THM 6 Series is a range of medical-grade 6 Watt DC/DC converters designed for demanding applications requiring high isolation and reliability. Encased in a compact DIP-24 plastic package, these converters provide 5000 VACrms isolation and low leakage current below 2A, compliant with IEC/EN/ES 60601-1 3rd edition standards. They feature a wide input voltage range of 4.5-9V to 36V, high efficiency up to 89%, and operate reliably in temperatures from -40°C to +90°C. Suitable for medical, transportation, and control measurement equipment, with UL, CE, and other certifications, ensuring safety and compliance.
TRACO POWER THM64815 Medical DC/DC Converter Specifications:
- Input Voltage Range: 4.5-9 VDC to 36 VDC
- Output Voltage Options: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC, 36 VDC, ±15 VDC
- Output Current Max: 1800 mA to 4200 mA depending on model
- Isolation Voltage: 5000 VACrms, rated at 250 VACrms working voltage
- Efficiency: Up to 89%
- Operating Temperature Range: -40°C to +90°C
- Leakage Current: < 2A
- Dimensions: DIP-24 plastic case
- Start-up Voltage: 4.5 VDC to 36 VDC depending on model
- Surge Voltage: Max. 100 V
- EMC Compliance: IEC 60601-1-2 4th edition, EN55032 class A
- Certification: IEC/EN/ES 60601-1, UL, CE, ISO 13485
- MTBF: 4,700,000 hours
- Mounting: DIP-24 package, optional remote control and trim options
- Soldering Temp: 265°C / 10 s max.
Buy the Buy Traco Power Medical DC/DC Converter Part Number THM64815 Online
Order the Traco Power THM 6-4815 medical-grade 6 Watt DC/DC converter online today. Featuring high efficiency up to 89%, 5000 VACrms isolation, and wide input voltage range, it ensures safe and reliable operation in demanding medical and industrial environments. Compact DIP-24 packaging simplifies integration into space-constrained systems. Certified to IEC 60601-1, UL, and CE standards, this converter is ideal for medical equipment, transportation, and control applications. Purchase now for fast delivery and unmatched quality assurance.
Buy Traco Power THM 6-4815 high-efficiency medical-grade DC/DC converter now and ensure reliable performance for demanding medical and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER THM64815?
You can click on the BUY or RFQ button to purchase THM64815 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM64815?
You can download the THM64815 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM64815?
TRACO POWER
