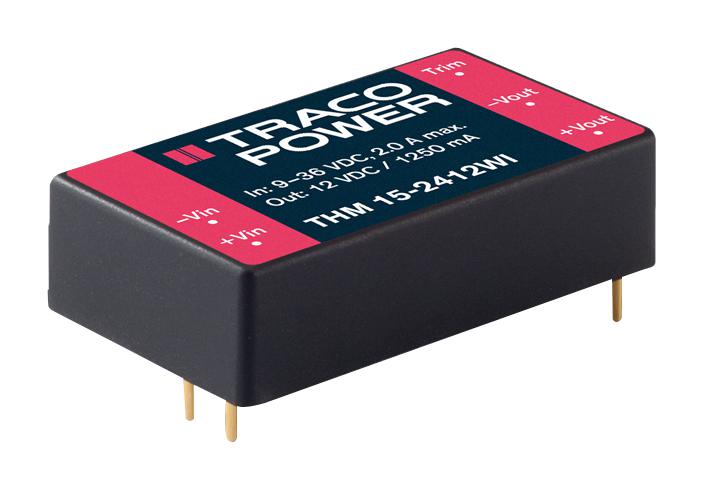

TRACO POWER THM152412WI Medical DC/DC Converter
The THM 15WI series consists of medical-grade 15 Watt DC/DC converters designed for high reliability in healthcare devices and demanding industrial applications. Featuring a compact 1.6 x 1 inch plastic case, these converters offer a wide 4:1 input voltage range, reinforced 5000 VACrms isolation, and low leakage current below 2.5 pA. They operate reliably from -40°C to +85°C ambient temperatures, comply with IEC 60601-1 standards for patient safety, and include features like high efficiency up to 90%, overvoltage protection, overcurrent limit, and enhanced EMC immunity. Suitable for challenging medical, transportation, control, measurement, and power driver applications.
TRACO POWER THM152412WI Medical DC/DC Converter Specifications:
- Input Voltage Range: 9 VDC to 36 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC options
- Output Power: 15 W
- Efficiency: Up to 89.5%
- Isolation Voltage: 5000 VACrms
- Operating Temperature Range: -40°C to +85°C
- Leakage Current: < 2.5 pA
- Input Current No Load: 10 mA typ.
- Surge Voltage: 60 V max. (models with lower surge max 100 V)
- Start-up Voltage: 9 VDC or lower, 18 VDC or lower
- Input Filter: Pi-type
- Output Voltage Accuracy: ±1%
- Voltage Adjustment Range: ±10% to ±20%
- Line Regulation: 0.2%
- Load Regulation: 0.2% single, 1.0% dual output
- Ripple & Noise (20 MHz): 50-75 mVp-p
- Transient Response Recovery Time: 250 µs
- Overvoltage Limit: 6.2 V to 30 V depending on model
- Input/Output Capacitance: 190 pF to 900 pF
- Isolation Capacitance: 20 pF
- MTBF: 2,080,000 hours
- Vibration & Shock Resistance: MIL-STD-810F compliant
- Soldering Temperature: Max 265°C for 10 seconds
- Dimensions: 1.6 x 1.0 inches, plastic casing
- Weight: Approximately 24 grams
Buy the Traco Power THM152412WI – Reliable Medical DC/DC Converter for Industrial Applications
Purchase the Traco Power THM152412WI online today—this high-reliability 15W DC/DC converter features reinforced isolation, wide input voltage range, low leakage current, and exceptional efficiency. Ideal for medical equipment, transportation, and industrial control systems, it guarantees dependable operation across temperatures from -40°C to +85°C. With proven EMC immunity and overvoltage protection, this compact device ensures safety and durability in critical applications. Order now to enhance your system’s power management with a trusted, high-performance converter.
Get Traco Power THM152412WI today—designed for medical-grade reliability and long-lasting performance in demanding industrial environments.
