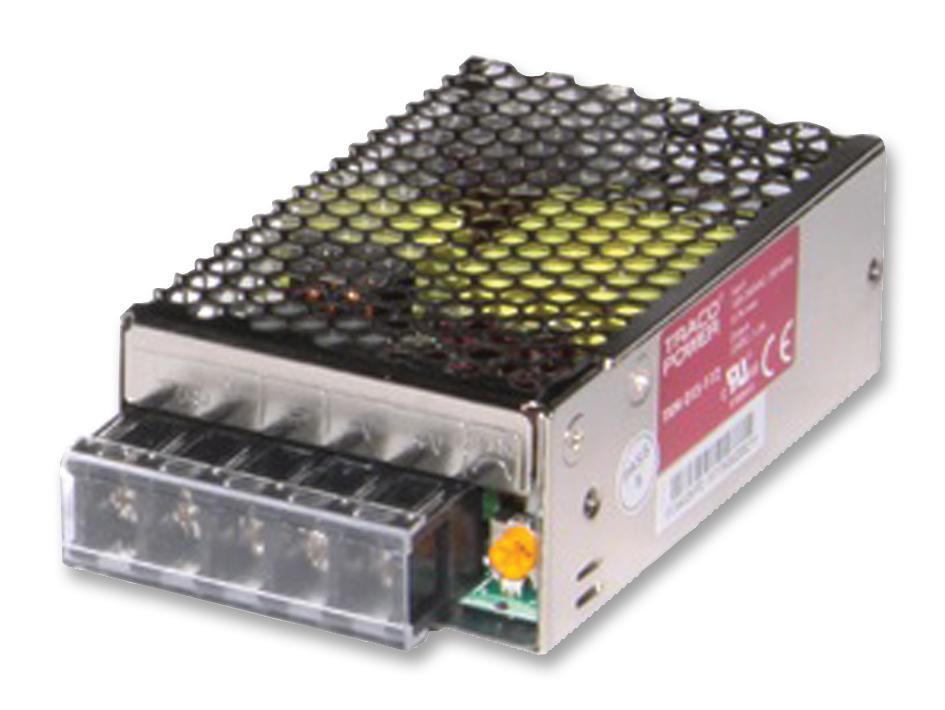

TRACO POWER TXM015105 industrial power supply
The TXM Series power supplies offer compact, metal-cased units with universal AC input, adjustable output voltage, and high efficiency up to 89%. These power supplies operate at ambient temperatures up to 70°C with no internal fan for models up to 150 W. They feature screw terminal blocks for easy wiring, with low no-load power consumption (<0.5 W for units up to 75 W). Suitable for cost-critical applications, they meet European EMC standards and include overload and short-circuit protection, making them ideal for industrial automation and control systems requiring reliable, efficient power delivery.
TRACO POWER TXM015105 industrial power supply Specifications:
- Input Voltage Range: 100-240 VAC, 90-264 VAC, 127-370 VDC
- Frequency Range: 47-63 Hz
- Output Power: 15W to 320W
- Efficiency: Up to 89%
- Operating Temperature: -25°C to +70°C (varies by model)
- Isolation Voltage: 3000 VAC (input/output), 1500 VAC (input/case), 500 VAC (output/case)
- Ripple and Noise: < 1.0 % of Vout nom. at 20 MHz bandwidth
- Protection Modes: Overcurrent, overvoltage, short circuit
- MTBF: Over 200,000 hours at +25°C
- Dimensions: Vary by model, typical case length approx. 150-226.5 mm, width 55.2-60 mm, height 30-42 mm
- Certifications: UL 60950-1, IEC/EN 60950-1, CE, CB, Reach compliance
- Display Efficiency: 80-89%
Buy the Buy Traco Power TXM Power Supply Part Number TXM015105 Online
Enhance your automation setup today by ordering the Traco Power TXM015105 power supply online. This compact, efficient power source offers adjustable voltage, high reliability, and universal input compatibility, ideal for industrial control systems and automation equipment. With low no-load consumption and robust overload protection, it ensures continuous operation even in demanding environments. Easy to install via screw terminals, it meets strict safety and EMC standards, providing dependable power for your critical applications. Shop now for fast delivery and excellent support.
Order your Traco Power SeriesTXM015105 for reliable and efficient industrial power supply today and enhance your automation projects with high-quality power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TXM015105?
You can click on the BUY or RFQ button to purchase TXM015105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXM015105?
You can download the TXM015105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXM015105?
TRACO POWER
