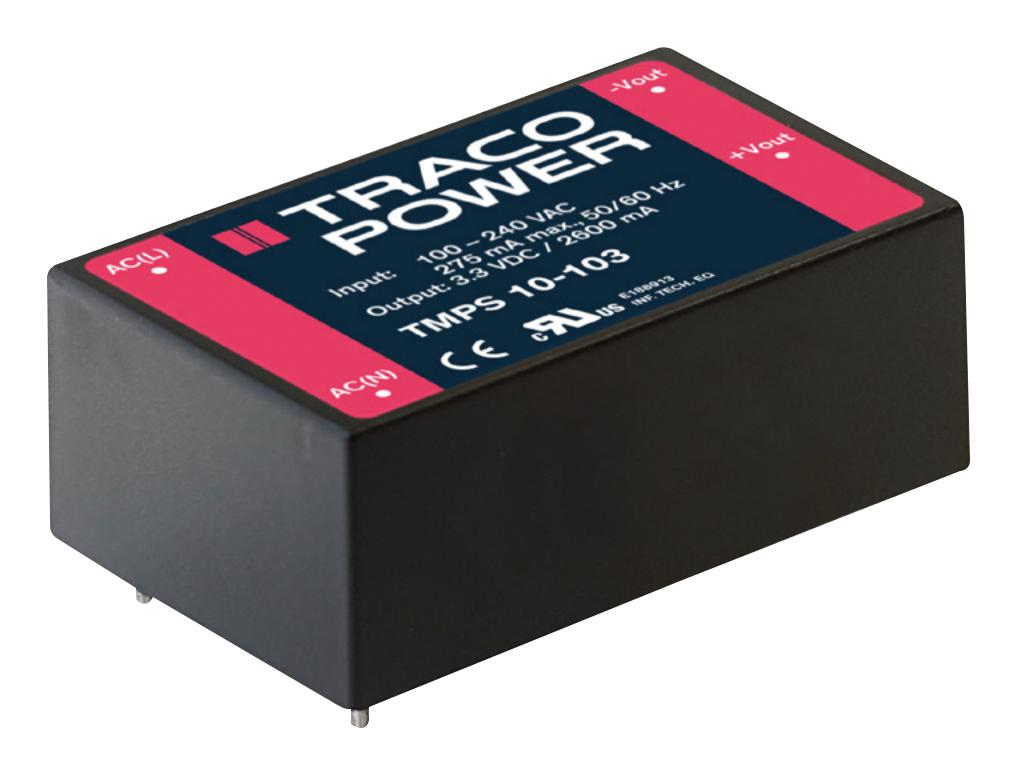

TRACO POWER TMPS10103 Power Module
The TMPS 10 series offers ultra compact 10 Watt PCB power modules suitable for space-constrained applications in household and industrial environments. Certified to IEC/EN/UL 62368-1 and IEC/EN 60335-1, these modules feature reinforced I/O isolation of 4000 VAC, operate between -25°C and +70°C, and support peak currents of 130% for 30 seconds. They meet ErP regulations with low no-load power consumption under 0.15W and ensure EMI compliance with EN 55032 class B and EN 55014-1 standards. Designed for PCB mounting, these modules provide reliable power solutions with high efficiency and safety certifications.
TRACO POWER TMPS10103 Power Module Specifications:
- Input Voltage: 85–264 VAC, 120–370 VDC
- Output Power: 10 W
- Output Voltages: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, 48 V
- Output Current: 2600 mA at 3.3 V, 2000 mA at 5 V, 1100 mA at 9 V, 830 mA at 12 V, 660 mA at 15 V, 410 mA at 24 V, 210 mA at 48 V
- Efficiency: 77% to 86%
- Isolation Voltage: 4000 VAC
- Operating Temperature: -25°C to +70°C, derating at 2.5%/K above 50°C
- Ripple & Noise: 60 mVp-p max
- Switching Frequency: 30–65 kHz
- Protection: Short circuit, overvoltage, auto recovery
- Dimensions: Approximately 1
- 1.5
- 29
- 15.74
- 19.05
- 12.7
- 2.54
- 0.75
- 0.1
- 0.1
- 1
- 0.04
- 0.004
- 0.62
- 0.5
- 85.4
- 20
- 20
- 29
- 15.74
- 19.05
- 12.7
- 2.54
- 0.75
- 0.1
- 0.1
- 1
- 0.04
- 0.004
- 0.62
- 0.5
- 85.4
- 20
- 20
- Certifications: IEC 60950-1, IEC 62368-1, IEC 60335-1, UL 60950-1, UL 62368-1
- Safety & EMC: Meets EN 55032, EN 55014-1, FCC Part 15 B, IEC/EN/UL standards
- Mechanical: Fully encapsulated plastic casing, Tinned copper pins, Weight 29g
Buy the Buy Traco Power TMPS 10 Series Part Number TMPS10103 Online
Discover the compact and reliable Traco Power TMPS 10 Series power modules, delivering 10 Watts of clean, stable power suitable for industrial, household, and IT applications. These modules meet strict safety standards, offer reinforced isolation of 4000 VAC, and support diverse output voltages from 3.3 V to 48 V. Designed with high efficiency of up to 86% and compliant with ERP directives, they feature auto-recovery protections for short circuits and overvoltage, low no-load power consumption, and are ideal for space-constrained designs requiring dependable power supply solutions.
Order your Traco Power TMPS 10-103 10 Watt PCB power module today and ensure reliable power for your low-power and industrial applications.
