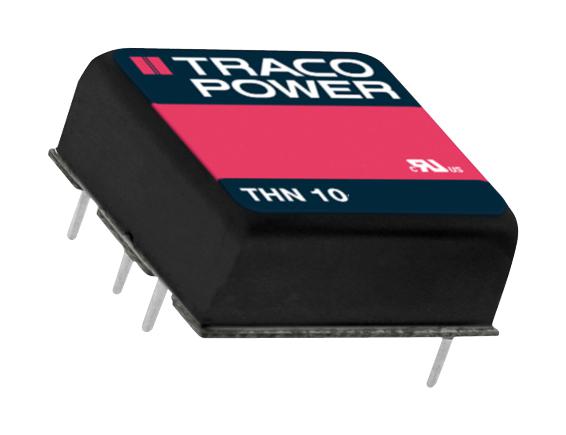

TRACO POWER THN107211WIR High-Performance Power Module
The THN 10WIR series consists of rugged, high-efficiency 10 Watt DC/DC converters designed for harsh environments, with a compact 1” x 1” metal package. Approved for railway applications under EN 50155 and EN 61373, they feature a wide input voltage range from 9-36 VDC, 18-75 VDC, or 36-160 VDC, with operating temperatures from -40°C to +80°C without derating. These converters offer up to 90% efficiency, 3000 VDC I/O isolation, overload, overvoltage, and short circuit protection, remote On/Off, and trim functions, making them ideal for transportation and industrial applications.
TRACO POWER THN107211WIR High-Performance Power Module Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Input Surge Voltage: 60 VDC max at 24 V, 100 VDC at 48 V, 185 VDC at 110 V
- Output Power: 10 Watts with various voltage options (3.3V, 5V, 12V, 15V, 24V)
- Efficiency: up to 90%
- Operating Temperature Range: -40°C to +80°C without derating
- Isolation Voltage: 3000 VDC input to output
- Protection: Overload, overvoltage, short circuit, automatic recovery
- Features: Remote On/Off, output trim, internal EMI filter, UL 62368-1 and IEC 62368-1 safety standards
- Dimensions: 1” x 1” x 0.50” (25.4 x 25.4 x 12.7 mm)
- Compliance: EN 50155, EN 61373, EN 45545-2 fire behavior, MIL-STD-810F vibration, EMI/EMC standards
- Reliability: MTBF over 2.3 million hours, robust housing with heat sinking capabilities
Buy the Buy Traco Power THN 10WIR Series 10 Watt DC/DC Converter Part Number THN107211WIR Online
Secure your power management needs with the Traco Power THN 10WIR Series 10 Watt DC/DC converter. Engineered for reliability in demanding environments, this compact module features a wide input voltage range, high efficiency up to 90%, and robust safety standards including railway approvals. Its low temperature operation from -40°C to +80°C, combined with overload, overvoltage, and short circuit protection, ensures seamless performance. Easy remote control and trimming capabilities make it suitable for industrial automation, transportation systems, and critical infrastructure projects. Purchase online now for dependable power solutions.
Order your Traco Power THN 10WIR Series 10 Watt DC/DC Converter today and experience reliable power solutions for railway and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER THN107211WIR?
You can click on the BUY or RFQ button to purchase THN107211WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN107211WIR?
You can download the THN107211WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN107211WIR?
TRACO POWER
