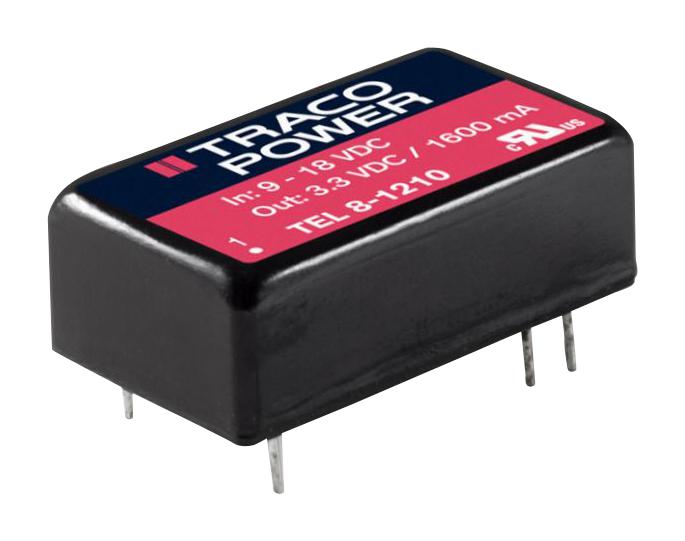

TRACO POWER TEL84822 DC/DC Converter
The TEL 8 series is an ultra-compact 8-watt DC/DC converter housed in a DIP-16 metal package, suitable for space-critical applications. It features a 2:1 input voltage range, fully regulated outputs, and high efficiency up to 86%. Operating from -40°C to +80°C, it includes built-in filters for EN 55032 class A compliance, making it ideal for instrumentation, industrial electronics, and IT equipment requiring reliable power conversion. Its robust design ensures protection against short circuits and overloads, ensuring durability in demanding environments.
TRACO POWER TEL84822 DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC options
- Output Voltage: +12 VDC, +15 VDC, 3.3 VDC, 5 VDC, 24 VDC, etc.
- Output Current Max: 335 mA to 1600 mA depending on model
- Efficiency: Up to 86%
- Operating Temperature: -40°C to +80°C, derating above 70°C at 5%/K
- Isolation Voltage: 1,800 Vpk, 1,500 VDC
- Ripple & Noise: 55 mVp-p
- Dimensions: 16.2 x 11 x 14 mm (approximate)
- Protection: Short circuit, overload, under voltage shutdown
- Switching Frequency: 370 kHz
- Humidity: 95% RH max.
- Certifications: IEC/EN 60950-1, UL60950-1, RoHS
Buy the Traco Power Series TEL8 Power Converter: TEL84822
Get the Traco Power Series TEL8 DC/DC converter TEL84822 online now to upgrade your instrumentation and industrial electronics with a highly efficient, reliable power solution. This ultra-compact 8-watt converter features a 2:1 input range, fully regulated outputs, and EN 55032 class A filter compliance. Designed for demanding environments, it offers protection against short circuits and overloads, operates from -40°C to +80°C, and ensures stable power delivery in compact applications. Purchase today for peace of mind and high-performance power management.
Order your Traco Power Series TEL8 power converter TEL84822 today and ensure reliable, efficient power in space-critical industrial and electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL84822?
You can click on the BUY or RFQ button to purchase TEL84822 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL84822?
You can download the TEL84822 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL84822?
TRACO POWER
