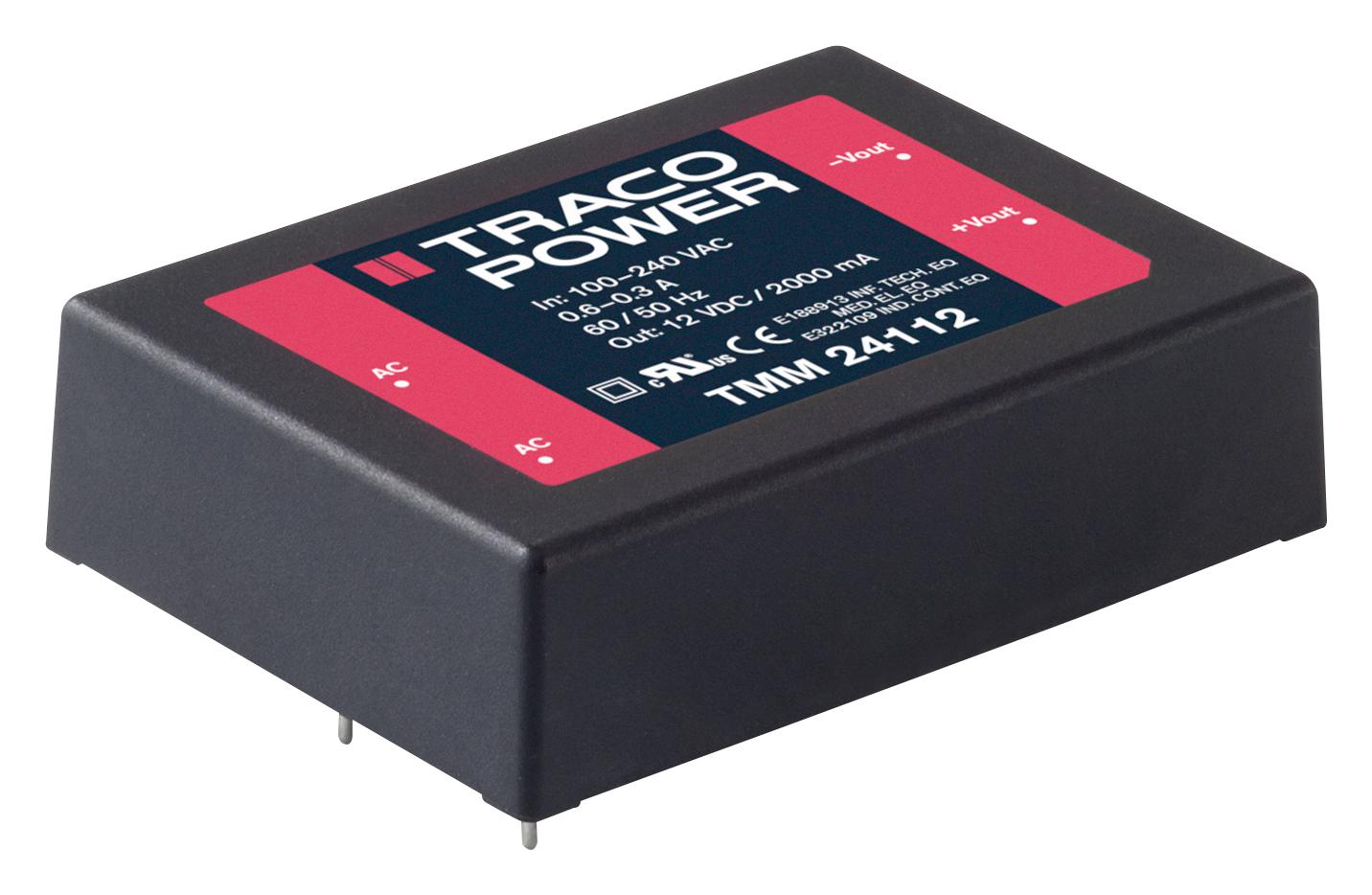

TRACO POWER TMM24112 Medical Power Module
The TMM 24 Series offers fully encapsulated 24 Watt AC/DC power modules designed for medical, industrial, and transportation applications. These units feature high efficiency, low no-load power consumption under 0.3W, and support a wide input voltage range of 85-264 VAC. Built with reinforced/double isolation system conforming to medical safety standards (2 x MOPP), they provide reliable operation from -40°C to +65°C, with improved derating up to 80°C. Certified for UL, EN, and IEC safety standards, these modules are ideal for demanding industrial and medical environments, offering protection against over-temperature, overload, and short circuits, with a 3-year warranty.
TRACO POWER TMM24112 Medical Power Module Specifications:
- Power Output: 24 W
- Output Voltage: 24 VDC / 1000 mA
- Input Voltage Range: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 47 - 440 Hz
- Efficiency: 82%
- No-load Power Consumption: <0.3 W
- Operating Temperature: -40°C to +65°C, with derating up to 80°C
- Storage Temperature: -40°C to +95°C
- Isolation Voltage: 4,000 VAC
- Humidity: 95% non-condensing
- MTBF: >400,000 hours
- Safety Certifications: UL 60950-1, IEC 60601-1 3rd Edition, UL 508 (chassis mount)
- Protection: Over-temperature, overload, short circuit
- Dimensions: PCB mount: 54 x 41 x 19.3 mm, Chassis mount: 147 g weight
Buy the TracoPower TMM24112 – Reliable Medical Power Supply for Industrial Applications
Purchase the Traco Power TMM24112 24W power module online today for reliable, high-efficiency power conversion in medical and industrial environments. These certified units feature advanced safety standards including 2 x MOPP isolation, UL and IEC approvals, and operate over a wide temperature range from -40°C to +65°C, derating to 80°C. With less than 0.3W no-load power consumption and robust protection against temperature, overload, and short circuits, they deliver consistent performance. Easy to integrate, these modules suit transportation, industrial automation, and medical equipment, backed by a 3-year warranty.
Order your Traco Power series TMM24112 24 Watt medical-grade power supply today and ensure dependable performance for your critical industrial and medical devices.
