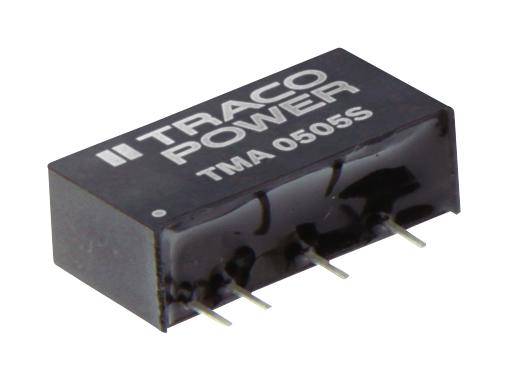

TRACO POWER TMA2405D Miniature Isolated DC/DC Converter
The TMA series are miniature, 1W isolated DC/DC converters in a SIP package, offering high efficiency up to 81% and compact design requiring only 1.2 cm². Suitable for space-critical applications, these unregulated devices include single and dual output models with industry standard pinouts, 1000 VDC isolation, and operate within -40°C to +85°C. Rugged, lead-free, and RoHS compliant, they feature high reliability, burn-in testing, and a 3-year warranty, ideal for board-level power distribution in industrial and electronic systems.
TRACO POWER TMA2405D Miniature Isolated DC/DC Converter Specifications:
- Power: 1 Watt
- Package: Single-in-line (SIP)
- Input voltage range: 5 VDC to 24 VDC (various models with different input voltages)
- Output voltage options: 5V, 12V, 15V (single and dual output models)
- Efficiency: up to 81%
- Isolation Voltage: 1000 VDC
- Operating temperature: -40°C to +85°C
- Storage temperature: -55°C to +125°C
- Humidity: 95% RH max, non-condensing
- Dimensions: 19.5 x 10 x 4.6 mm (approximate)
- Soldering temperature: max 260°C / 10 s
- SMD Technology, lead-free, RoHS compliant
- MTBF: over 2,000,000 hours
- Switching frequency: 70 to 120 kHz
- Isolation resistance: >1000 MΩ
- Input/output capacitance: approx 60 pF
- Reverse polarity input current: 0.3 A max
- Short circuit protection: limited to 0.5 seconds
Buy the TracoPower TMA2405D – Reliable Isolated Power Supply for Industrial Applications
Order the TracoPower TMA2405D miniature isolated DC/DC converter online today to ensure high-quality, efficient power conversion for your industrial electronic systems. This compact device provides 1W power output with excellent efficiency up to 81%, wide operating temperature range from -40°C to +85°C, and industry-standard pinout for easy integration. Its high reliability, RoHS compliance, and 3-year warranty make it the ideal choice for board-level power distribution in space-critical applications, ensuring your electronic projects are powered effectively and securely.
Buy TracoPower TMA2405D now and experience unmatched reliability and performance in space-critical power conversion applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMA2405D?
You can click on the BUY or RFQ button to purchase TMA2405D from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMA2405D?
You can download the TMA2405D datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMA2405D?
TRACO POWER
