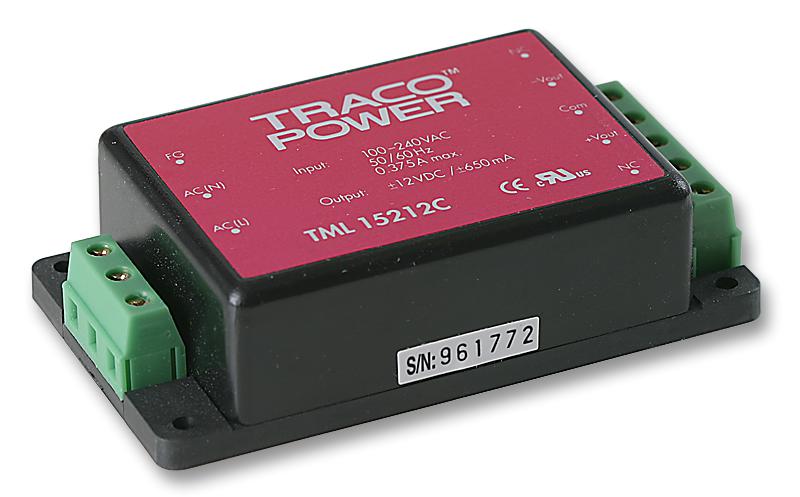

TRACO POWER TML20105C AC/DC Power Module
The TML series 20 and 40 Watt encapsulated AC/DC power modules are compact, high power density solutions suitable for space-critical applications in commercial and industrial electronic equipment. They feature PCB and chassis mount options with screw terminals, fully encapsulated plastic cases, and offer single, dual, and triple output models with universal input 90-264 VAC and 47-440 Hz. Safety and EMC approvals include UL 60950-1, EN 55022, class B, FCC, and EN 55024. The series provides short circuit, overload, overvoltage, and overtemperature protections, with efficiencies ranging from 75% to 84%, making them reliable and versatile for various industrial electronic projects.
TRACO POWER TML20105C AC/DC Power Module Specifications:
- Input voltage range: 90 - 264 VAC, 100 - 375 VDC
- Input frequency: 47-440 Hz
- Output power: 20 W to 40 W
- Output voltage options: 3.3 V, 5 V, 12 V, 15 V, 24 V, +/−12 V, +/−15 V, +/−5 V
- Output current: up to 8,000 mA depending on model
- Efficiency: 75% to 84%
- Protection: Short circuit, overload, overvoltage (120% Vout), overtemperature at 100°C
- Isolation voltage: 3000 VAC input/output
- Operating temperature: 25°C to +60°C (derating above 50°C at 3%/K)
- Humidity: 95% non-condensing
- Switching frequency: 100 kHz to 132 kHz (models)
- MTBF: >200,000 hours
- Safety standards: UL 60950-1, IEC 60950-1, EN 60950-1
- EMC: EN 55022, FCC part 15, level B, EN 55024
- Protection class: II to IEC/EN 60536
- Casing material: plastic resin + fiberglass (UL 94V-0 rated)
- Dimensions: PCB mount models approx. 38 x 26 mm (TML 20), chassis models approx. 50 x 86 mm (TML 40)
- Weight: 110 to 325 g depending on model
Buy the Buy TRAC Power TML Series AC/DC Power Modules Part Number TML20105C Online
Purchase the TRAC Power TML Series power modules online today to benefit from high-quality, efficient, and space-efficient power supplies ideal for industrial and commercial electronic applications. These fully encapsulated, UL and EN certified power modules offer multiple output options, high reliability, overvoltage, overcurrent, and thermal protections, with efficiencies reaching up to 84%. Compact and easy to install with PCB or chassis mounting, they are suitable for space-critical applications requiring safety compliance and consistent power performance. Secure your supply now and streamline your project integration.
Order your TRAC Power TML Series20W to 40W power supply today and ensure reliable performance for your industrial electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER TML20105C?
You can click on the BUY or RFQ button to purchase TML20105C from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TML20105C?
You can download the TML20105C datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TML20105C?
TRACO POWER
