TRACO POWER TEM31223N Industrial DC/DC Converter
The TEM 3N series is a compact 3-watt isolated DC/DC converter with a DIP-24 package, offering fully regulated output, low noise, short circuit protection, and an operating temperature range of -40°C to +85°C. Suitable for industrial and consumer electronics, it features industry-standard pinout, high efficiency up to 82%, and meets safety standards including UL60950-1. Its cost-effective design makes it ideal for space-constrained applications requiring reliable voltage conversion with minimal noise and high isolation voltage of 1500 VDC.
TRACO POWER TEM31223N Industrial DC/DC Converter Specifications:
- Power: 3 Watt
- Input Voltage Range: 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Output Voltage Options: 5 V, 12 V, 15 V, 24 V
- Maximum Output Current: 600 mA (5V), 250 mA (12V), 200-410 mA (15V), 200 mA (24V)
- Efficiency: up to 82%
- Isolation Voltage: 1500 VDC (Input/Output)
- Operating Temperature: -40°C to +85°C
- Ripple & Noise: 30 mVp-p typical
- Short Circuit Protection: Yes, automatic recovery
- Humidity: 95% non-condensing
- Case Material: Non-conductive black plastic (UL 94V-0)
- Dimensions & Weight: Small size, approximately 12.4 g
- Switching Frequency: 300 kHz typical
- Certifications: UL 60950-1, CSA, IEC 60950-1, EN 60950-1
- Temperature Coefficient: ±0.02 %/K
- Storage Temperature: -50°C to +125°C
- Soldering Temperature: Max 260°C for 10 sec

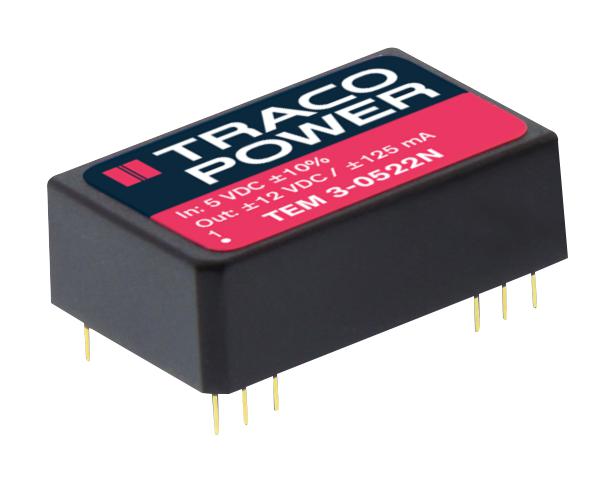

Buy the TRACOPOWER TEM 3N – Reliable DC/DC for Industrial Applications
Discover the high-performance TRACOPOWER TEM 3N series, a dependable 3-watt isolated DC/DC converter designed for industrial and consumer electronics. Featuring fully regulated output, low noise, high efficiency up to 82%, and wide operating temperature range from -40°C to +85°C, it ensures stability and durability in challenging environments. Its compact DIP-24 package, high isolation voltage of 1500 VDC, and compliance with safety standards make it the ideal choice for space-constrained, safety-critical applications. Order online today for reliable power conversion.
Buy TRACOPOWER TEM 3N now and experience unmatched reliability and performance for your industrial power needs.
Frequently Asked Questions
Where can I buy TRACO POWER TEM31223N?
You can click on the BUY or RFQ button to purchase TEM31223N from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEM31223N?
You can download the TEM31223N datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEM31223N?
TRACO POWER
