TRACO POWER TMPW5103 power supply
The TMPW 5 Series is a compact 5 Watt AC/DC power supply with an extended input range of 90-305 VAC, suitable for industrial and household applications. Encased in a small plastic housing measuring 1.46 inches by 1.08 inches, it Features high efficiency up to 83%, reinforced insulation, and a wide operating temperature of -40°C to +70°C. Compliant with safety standards IEC/EN UL 62368-1 and EN 60335-1, it offers 1/0-isolation of 47000 VAC, internal EN 55032 class B filter, and low no-load power consumption below 0.1 W, making it versatile and energy-efficient.
TRACO POWER TMPW5103 power supply Specifications:
- Power Output: 5 Watts
- Output Voltage Options: 3.3 V, 5 V, 12 V, 24 V
- Output Current: up to 1.515 A
- Input Voltage Range: 90-305 VAC, 100-250 VDC
- Input Frequency: 47-63 Hz (designed for 47-440 Hz)
- Efficiency: Up to 83%
- Isolation Voltage: 47000 VAC (1/0-isolation)
- Operating Temperature: -40°C to +70°C
- Ripple and Noise: 60-200 mVp-p depending on model
- Dimensions: 1.46 inches x 1.08 inches x thickness varies
- Safety Standards: IEC/EN UL 62368-1, EN 60335-1
- Protection Class: II (Reinforced Insulation)
- Leakage Current: Max 250 A
- Hold-up Time: Min. 15 ms at 230 VAC
- Input Power Consumption No Load: <0.1 W
- Weight: 24g

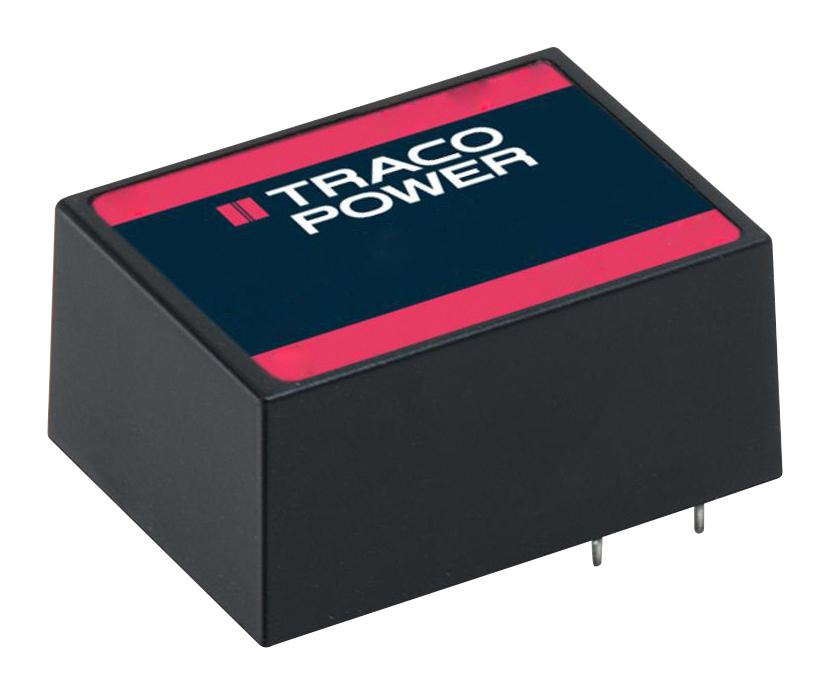

Buy the Buy Traco Power TMPW Series Power Supply Part Number TMPW5103 Online
Experience dependable power with the Traco Power TMPW Series 5 Watt power supply. Featuring a compact design, wide input voltage of 90-305 VAC, high efficiency up to 83%, and reinforced insulation, this model is ideal for industrial and household applications. It complies with international safety standards IEC/EN UL 62368-1 and EN 60335-1, ensuring safety and reliability. With low power consumption below 0.1 W at no load, and an internal EMI filter, it offers excellent performance in a small footprint, making it the perfect choice for energy-conscious projects.
Buy Traco Power TMPW5103 now and experience unmatched reliability and energy-efficient performance with reinforced insulation and wide input range.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW5103?
You can click on the BUY or RFQ button to purchase TMPW5103 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW5103?
You can download the TMPW5103 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW5103?
TRACO POWER
