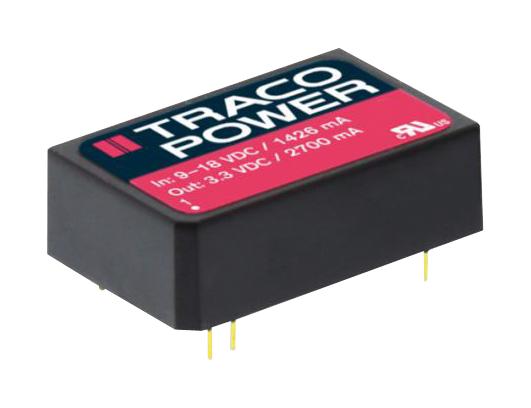

TRACO POWER TRI101213 DC/DC Converter
The TRI 10 series is a compact, high-isolation 10 Watt DC/DC converter designed for demanding industrial, transportation, and instrumentation applications. Featuring reinforced isolation capable of withstanding high test voltages (9000 VDC for 1s), it offers a wide 2:1 input voltage range (9-75 VDC), high efficiency up to 88%, and precise output regulation. Certified for IEC/EN/UL 62368-1 safety standards, it includes an integrated EN 55032 Class A filter, low no-load power consumption, and robust protection against overload, overvoltage, and short circuits, making it ideal for critical power management tasks.
TRACO POWER TRI101213 DC/DC Converter Specifications:
- Power Output: 10 Watt
- Input Voltage Range: 9-75 VDC (2:1 ratio)
- Input Voltage (nominal): 12 V, 24 V, 48 V
- Input Current at no load: 12mA (12V), 8mA (24V), 6mA (48V)
- Output Voltage Options: 3.3 V, 5.1 V, 12 V, 15 V, 24 V, -12 V, -15 V
- Output Current: 416 mA to 833 mA depending on model
- Efficiency: Up to 88%
- Isolation Voltage: 9000 VDC (1s), 7071 VDC (60s)
- Operating Temperature: -40°C to +85°C with derating above 65°C
- Protection: Overload, overvoltage, short circuit, automatic recovery
- Isolation Resistance: 10,000 MOhm at 500 VDC
- Insulation Capacitance: 20 pF max.
- Dimensions: Compact DIP-24 package, roughly 29.21 mm x 20 mm x 10.41 mm
- Certifications: IEC 62368-1, UL 62368-1, EN 55032 Class A, RoHS, Reach
- Working Voltage rating: 17000 VAC
- Cooling: Natural convection
Buy the Traco Power TRI 10 Series – Reliable DC/DC Converter for Industrial Applications
Discover the high reliability and efficiency of the Traco Power TRI 10 series DC/DC converters. Engineered with reinforced isolation, wide input voltage range, and certified safety standards, these compact converters deliver stable, regulated power for industrial, transportation, and instrumentation applications. Their robust protection features, low no-load power consumption, and high efficiency make them the perfect choice for demanding environments. Purchase online now to enhance your project with dependable power conversion solutions designed for safety, performance, and longevity.
Buy Traco Power TRI 10 Series high-isolation DC/DC converter now and ensure safe, efficient power for your industrial and transportation projects.
Frequently Asked Questions
Where can I buy TRACO POWER TRI101213?
You can click on the BUY or RFQ button to purchase TRI101213 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI101213?
You can download the TRI101213 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI101213?
TRACO POWER
