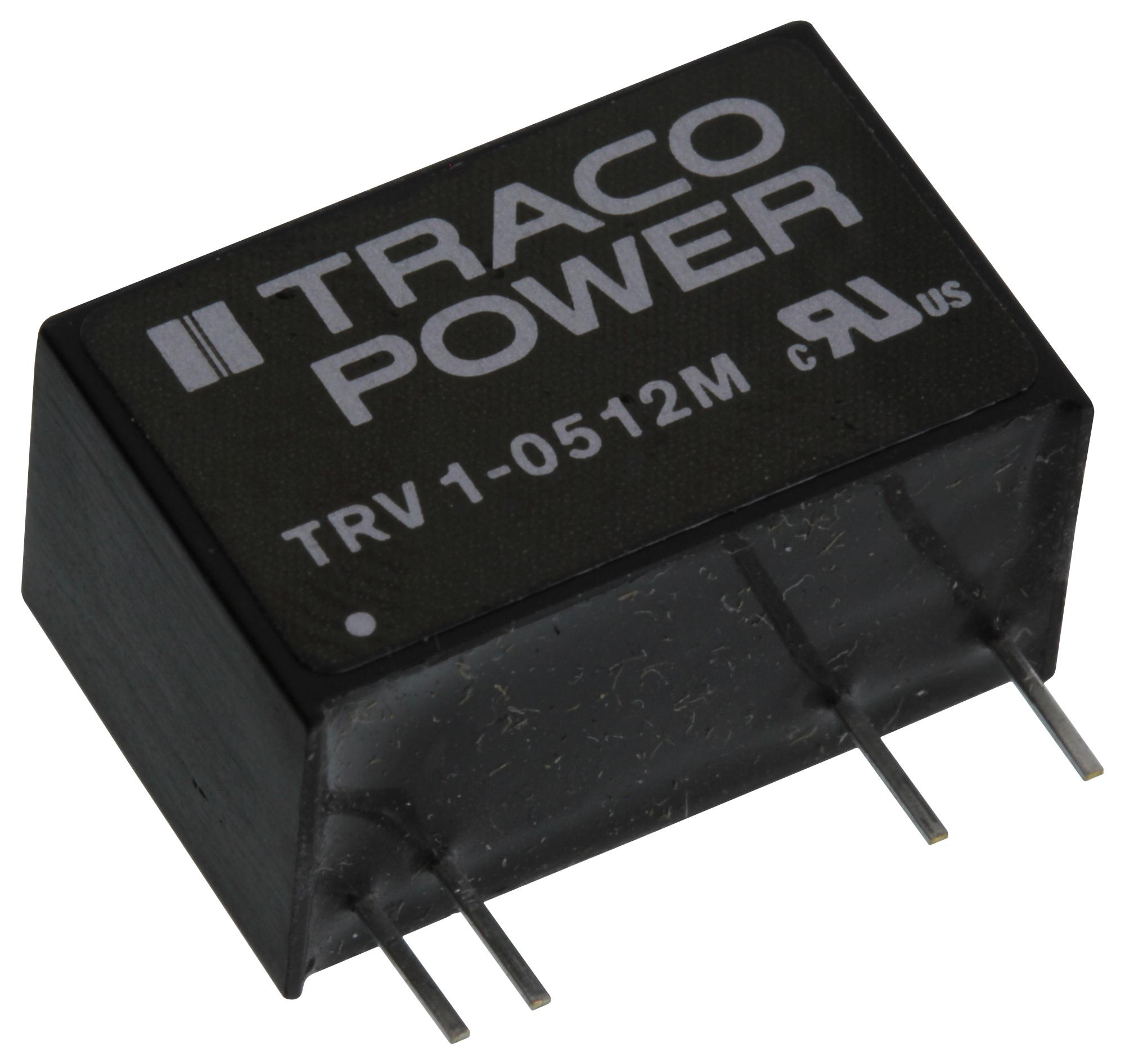

TRACO POWER TRV10512M Medical DC/DC Converter
The TRV 1M series offers 1 Watt DC/DC converters designed for medical and industrial applications, featuring reinforced 5000 VAC isolation, low leakage current below 2 pA, and short circuit protection. Operating from -40°C to +85°C without derating, these semi-regulated outputs accept input voltages from 5V to 24V with high efficiency up to 85%. Certified according to IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1, they suit medical isolation systems, ensuring safety and reliability in critical environments. Compact SIP-9 packaging enhances space efficiency for versatile applications.
TRACO POWER TRV10512M Medical DC/DC Converter Specifications:
- Input Voltage Range: 5V, 12V, 15V, 24V DC (+10%)
- Output Voltages: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V (semi-regulated)
- Isolation Voltage: 5000 VAC reinforced
- Input Current at No Load: 5V models 30 mA, 12V models 30 mA, 15V models 15 mA, 24V models 10 mA
- Surge Voltage: 5V max, 12V and 15V max 25V, 24V max 40V (1s)
- Operating Temperature: -40°C to +85°C without derating
- Efficiency: Up to 85%
- Short Circuit Protection: Continuous, automatic recovery
- Certification: IEC/EN/ES 60601-1 3rd edition, IEC/EN/UL 62368-1
- Leakage Current: < 2 pA
- Isolation Resistance: 70 MΩ at 500 V DC
- Dimensions: SIP-9 package, compact design
Buy the Traco Power TRV10512M – Reliable Medical DC/DC Converter for Industrial Applications
Enhance your medical or industrial systems with the Traco Power TRV10512M, a compact 1-Watt DC/DC converter featuring reinforced 5000 VAC isolation, low leakage current below 2 pA, and efficiency up to 85%. Operating from -40°C to +85°C without derating, it guarantees optimal performance in demanding environments. Certified according to IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1, this converter ensures safety, reliability, and space efficiency. Perfect for medical isolation systems needing robust power solutions, buy online today for assured quality and performance.
Buy Traco Power TRV10512M now and experience unmatched reliability, safety, and high efficiency for medical and industrial power needs.
