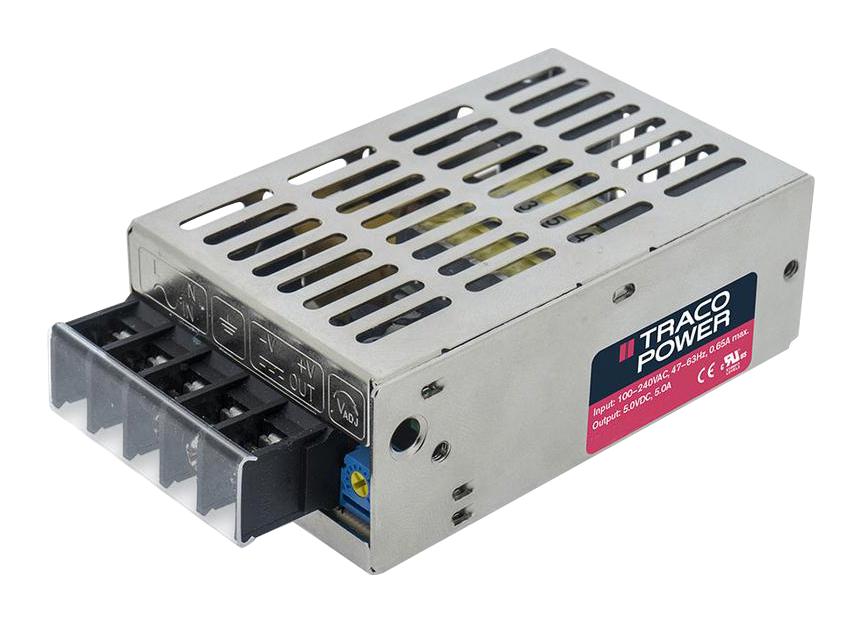

TRACO POWER TXLN025112 Mini Power Supply
The TXLN 025 series is a family of compact, encased power supplies designed for cost-sensitive applications. They feature a low-profile aluminum housing with screw terminal connections, making installation easy. These power supplies support universal input voltage (88-264VAC), operate via convection cooling with no fan, and achieve efficiency levels up to 84%. They comply with European EMC standards and the Low Voltage Directive (LVD), and hold IEC/EN/UL 62368-1 safety certifications. Additional features include short circuit, overvoltage, and overload protection, a 3-year warranty, and compatibility with pollution degree PD 2 and overvoltage category OVC II. Operating temperature ranges from -20°C to +70°C, with a switching frequency between 57kHz and 73kHz.
TRACO POWER TXLN025112 Mini Power Supply Specifications:
- Input Voltage Range: 88 - 264 VAC, 125 - 375 VDC
- Input Frequency: 47-63 Hz
- Output Power: 20 W to 25 W
- Output Voltage: 3.3 VDC (adjustable ±10%), 5 V, 7.5 V (optional), 30 V (optional)
- Output Current: Up to 6,000 mA depending on model
- Efficiency: Up to 88%
- Nominal Output Voltage Tolerance: ±3%
- Ripple and Noise: Max. 200 mVp-p (with 0.1 µF capacitor)
- Protection: Short circuit, overvoltage, overload - automatic recovery
- Operating Temperature Range: -20°C to +70°C (derating above 50°C)
- Cooling: Natural convection
- Dimensions: Compact low-profile aluminum case, specific dimensions vary
- Isolation Voltage: 3000 VAC (input to output), 4500 VAC (input to PE), 500 VAC (output to PE)
- Safety Certifications: IEC/EN/UL 62368-1
- EMC Standards: EN 61000-6-3, EN 55032 (class B), EN 61000-6-1, EN 61000-3-2
Buy the Traco Power TXLN 025 – Reliable Power Supplies for Industrial Applications
Purchase the highly efficient Traco Power TXLN 025 series power supply online today. Designed for cost-sensitive, industrial applications, it features universal input, high efficiency up to 88%, and comprehensive safety protections. Its compact aluminum case with screw terminal connections enables easy installation in tight spaces, while compliance with EN 61000-6-3 and UL 62368-1 ensures reliable operation. Ideal for automation, control systems, and embedded projects, this power supply offers durability, safety, and optimal power performance, making it the perfect choice for demanding industrial environments.
Get Traco Power TXLN 025 today—built for precision and long-lasting durability in industrial settings.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN025112?
You can click on the BUY or RFQ button to purchase TXLN025112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN025112?
You can download the TXLN025112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN025112?
TRACO POWER
