TRACO POWER TRV12411M Medical Power Converter
The TRV 1M series by Traco Power offers highly reliable 1 Watt DC/DC converters designed for medical and industrial applications. Featuring reinforced isolation of 5000 VAC, these converters provide ultra-low leakage current below 2 pA, ensuring safety and protection for connected interfaces or patient-applied parts. They support input voltages from 5 to 24 VDC, with semi-regulated outputs that maintain regulation under varying loads. Operating efficiently up to 85% at temperatures from -40°C to +85°C without derating, compliant with IEC/EN/UL 60601-1 and IEC 62368-1 standards, making them ideal for medical isolation systems requiring short circuit protection and high reliability.
TRACO POWER TRV12411M Medical Power Converter Specifications:
- Input Voltage Range: 5V, 12V, 15V, 24V DC (+10%)
- Isolation Voltage: 5000 VAC reinforced
- Operating Temperature: -40°C to +85°C without derating
- Efficiency: Up to 85%
- Leakage Current: < 2 pA
- Short Circuit Protection: Continuous, automatic recovery
- Safety Certifications: IEC/EN/UL 60601-1, IEC 62368-1
- Dimensions: Compact SIP-9 package, approximately 19.6 mm x 6 mm
- Isolation Resistance: 70,000 MΩ at 500 VAC
- Creepage Distance: 8 mm
- Insulation System: Reinforced
- Housing Material: UL94 V-0 rated plastic
- Pin Material: Brass, Nickel and Tin plating
- Weight: Approximately 4.89 grams
- Switching Frequency: 220 - 380 kHz
- Operation Altitude: Up to 5000 m
- Relative Humidity: Max 95% (non-condensing)

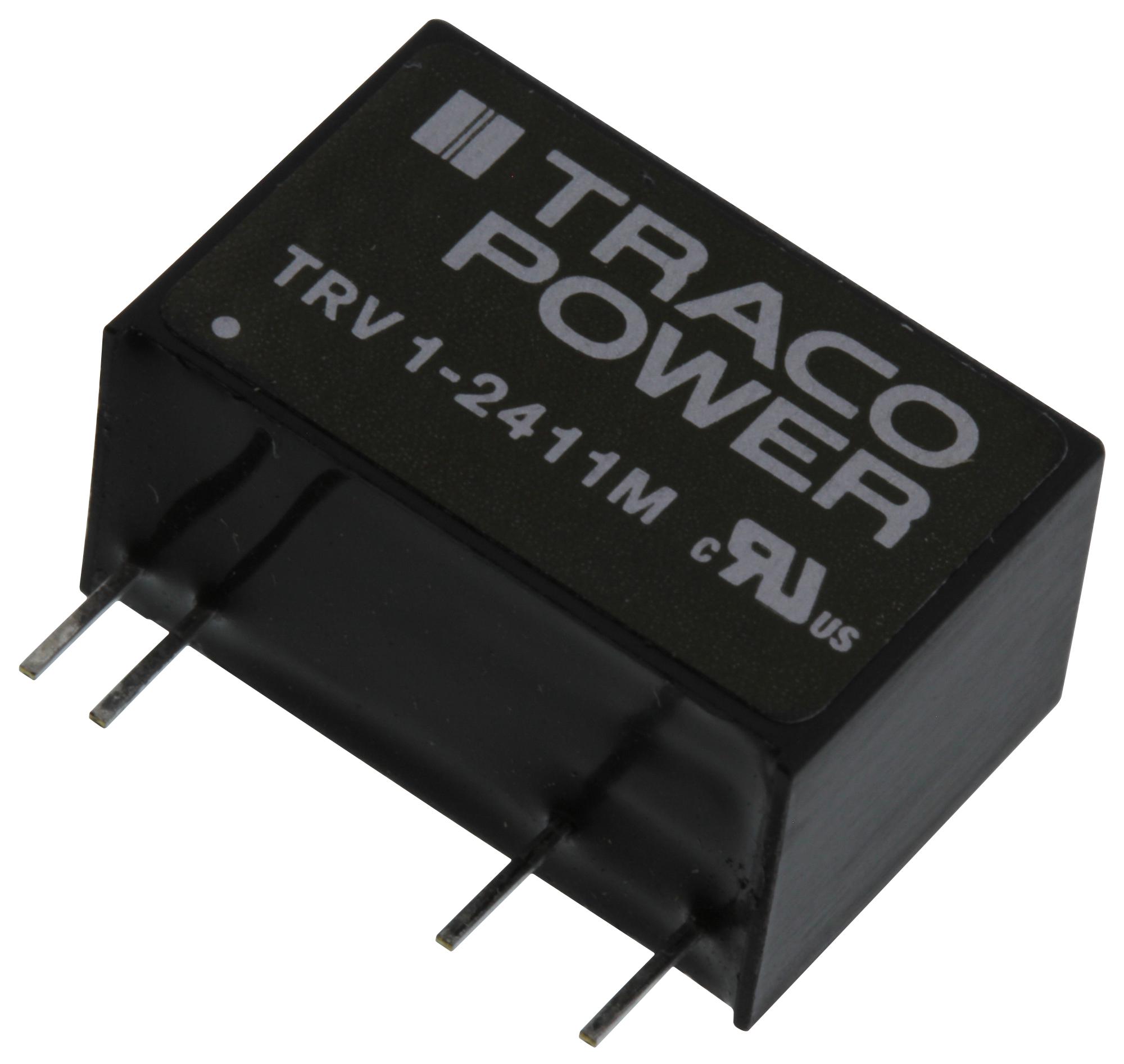

Buy the Buy Traco Power DC/DC Converter Part Number TRV12411M Online
Purchase the Traco Power TRV12411M 1 Watt medical DC/DC converter online today. Featuring reinforced 5000 VAC isolation, ultra-low leakage current, and wide temperature operation, this reliable power module is perfect for medical and industrial applications. Its compact SIP-9 design, high efficiency, and safety certifications ensure top-quality performance and safety standards. Easy to integrate into your systems, this converter provides stable power with short circuit protection, making it essential for critical healthcare and automation projects looking for dependable and compliant power solutions.
Order your Traco Power Series TRV12411M medical power converter today and ensure reliable, safe power delivery for your sensitive applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRV12411M?
You can click on the BUY or RFQ button to purchase TRV12411M from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRV12411M?
You can download the TRV12411M datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRV12411M?
TRACO POWER
