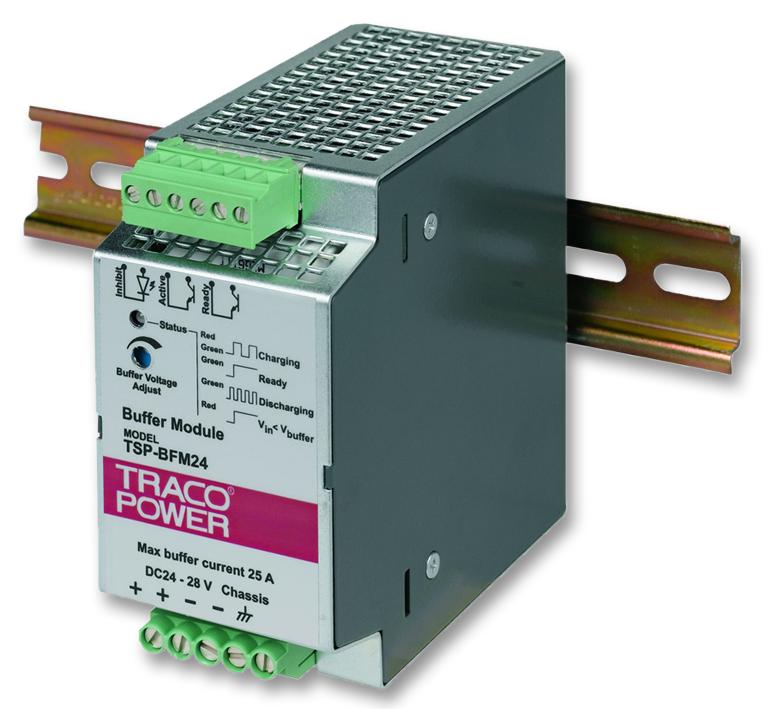

TRACO POWER TSPBFM24 Power Buffer Module
The TSP-BFM24 is a high-capacity buffer module designed to stabilize 24V DC output by maintaining voltage levels during power fluctuations and surges. Equipped with a capacitor bank, it ensures continuous power supply during short outages, providing reliable operation in industrial automation, control systems, and safety-critical applications. The module features a maintenance-free design with an indicator LED for status, overvoltage protection, and a quick connection via screw terminals. Its robust construction and thermal stability make it ideal for demanding environments requiring consistent power buffering and transient response.
TRACO POWER TSPBFM24 Power Buffer Module Specifications:
- Input Voltage: 24 VDC, ±10%
- Buffer Time: Max. 200 ms at 25 A, 4 s at 1.2 A
- Output Power: Max. 600 W
- Output Voltage: ≥22 VDC, adjustable >1 V below Uin, minimum 22 VDC
- Charging Current: Max. 0.6 A, during charging phase
- Dimensions: See page 11 for detailed dimensions (approx. 150 mm x 100 mm x 45 mm)
- Weight: 1.5 kg
- Environmental Temperature Range: -25°C to +70°C, derating above 40°C
- Isolation: IEC/EN 60950-1, UL 60950-1
- Protection: Overvoltage, overcurrent, reverse polarity, short circuit
- Status Indicator: Dual-color LED (green: OK, red: fault)
- MTBF: >3.3 million hours at +25°C
- Construction: Rustproof stainless steel enclosure with screw terminal connections
- Compliance: UL, UL 508, CSA, IECEx, ATEX (optional), conformity to industrial standards
Buy the Buy Industry Buffer Module Part Number TSPBFM24 Online
Order the TSP-BFM24 buffer module online now to ensure your control systems and safety-critical applications remain operational during power disturbances. With a high-capacity capacitor bank, this module provides up to 200 ms of buffering at 25 A or 4 seconds at lower loads, offering reliable transient response and voltage stability. Its maintenance-free design, status indicator, and robust construction make it an ideal choice for industrial automation, control, and safety systems. Secure your uninterrupted power supply today with fast shipping and dedicated customer support.
Get TSPBFM24 buffer module today—designed for reliable transient suppression and continuous power buffering in industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TSPBFM24?
You can click on the BUY or RFQ button to purchase TSPBFM24 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSPBFM24?
You can download the TSPBFM24 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSPBFM24?
TRACO POWER
