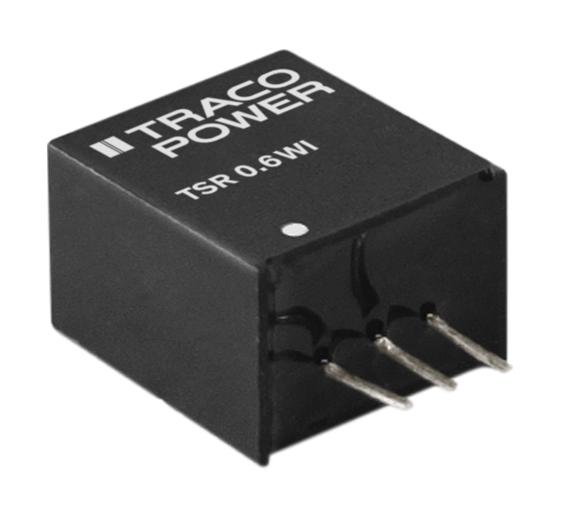

TRACO POWER TSR064833WI DC/DC Converter
The TSR 0.6WI Series by Traco Power offers non-isolated DC/DC converters with an ultra wide 8:1 input voltage range of 9-72 VDC, making them ideal for various battery and distributed power systems. These converters provide up to 94% efficiency, operate in temperatures from -40°C to +85°C, and include protection features such as short circuit, overvoltage, and overtemperature protection. Suitable for industrial, automation, and electronics applications, they are compact in SIP-3 package and support versatile uses across different input voltages with reliable, stable output regulation.
TRACO POWER TSR064833WI DC/DC Converter Specifications:
- Input Voltage Range: 9-72 VDC
- Output Voltage Options: 3.3 V, 5 V, 6.5 V, 9 V, 12 V, 15 V, 24 V
- Maximum Output Current: 0.6 A
- Efficiency: Up to 94%
- Operating Temperature Range: -40°C to +85°C
- Temperature Coefficient: +0.02 %/K max.
- Ripple and Noise: 50-75 mVp-p depending on model
- Short Circuit Protection: Yes, automatic recovery
- Overvoltage & Overtemperature Protection: Yes
- Start-up Time: 25-50 ms depending on model
- Housing Material: UL 94 V-0 epoxy plastic
- Insulation System: Non-isolated
- Cooling System: Natural convection
- Frequency: 117-864 kHz depending on model
- Vibration: MIL-STD-810F compliant
- Relative Humidity: 95% max. non condensing
- Case Temperature Range: -55°C to +125°C
Buy the Traco Power TSR 0.6WI – Reliable DC/DC Converter for Industrial Applications
Purchase the Traco Power TSR 0.6WI series online now to benefit from high efficiency, wide input voltage range, and robust protection features. These reliable, non-isolated converters are perfect for industrial automation, battery systems, and distributed power applications. Designed to operate from -40°C to +85°C, they offer stable output regulation, low ripple, and automatic protection against short circuits and overvoltage. Easy installation in SIP-3 package, ensuring your systems run efficiently and reliably with minimal heat dissipation. Order now to enhance your power management solutions.
Get Traco Power TSR 0.6WI today—built for precision and long-lasting durability in distributed power systems with wide input range and high efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER TSR064833WI?
You can click on the BUY or RFQ button to purchase TSR064833WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSR064833WI?
You can download the TSR064833WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSR064833WI?
TRACO POWER
