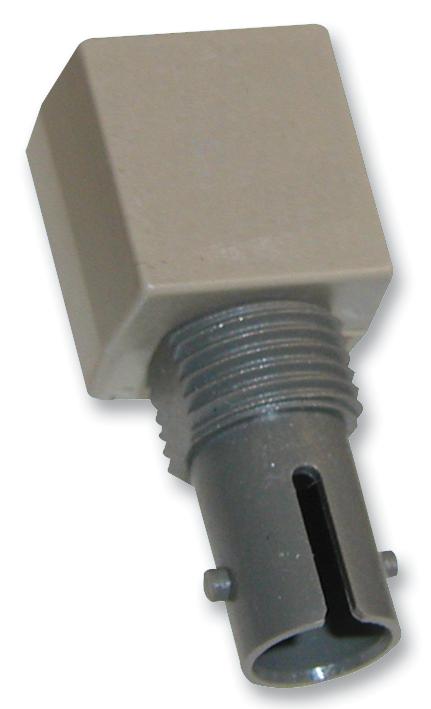

TT Electronics - Optek Technology OPF2412T Fiber Optic Receiver
The OPF2412 family is a low-cost digital output fiber optic receiver designed for industrial Ethernet, copper-to-fiber media conversion, intra-system fiber optic links, and video surveillance. It features an optical system that ensures consistent response across fiber sizes as small as 50/125µm, with a monolithic photodiode and DC amplifier. Compatible with TTL and CMOS logic, it operates from a 5 V supply, includes a built-in Schottky transistor, and offers wide temperature operation for robust industrial environments, making it ideal for reliable data transmission applications.
TT Electronics - Optek Technology OPF2412T Fiber Optic Receiver Specifications:
- Wavelength: 850nm
- Operation Speed: Up to 5Mbps
- Supply Voltage: 5 V (single supply)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +85°C
- Output Voltage: 0.5 V to 18.0 V
- Output Current: Up to 25 mA
- Open Collector Power Dissipation: 40 mW
- Peak Input Power Level, Logic High: 1 µW
- Peak Input Power Level, Logic Low: 2.9 to 120 pW
- Propagation Delay (Low to High): 65 ns
- Propagation Delay (High to Low): 49 ns
- Soldering Temperature: 260°C for up to 5 seconds
- Dimensions (OPF2412T): Length 12.70 mm, Width 5.08 mm, Height 2.54 mm
- RoHS Compliant, ESD Class 2
Buy the TT Electronics OPF2412T – Reliable Fiber Optic Receiver for Industrial Applications
Purchase the TT Electronics OPF2412T fiber optic receiver online today to enhance your industrial communication systems. This low-cost, high-performance device offers up to 5 Mbps operation at 850nm wavelength, compatible with TTL and CMOS logic. Designed for reliable data transfer in harsh environments, it features a wide temperature range, low power consumption, and built-in Schottky transistor. Ideal for Ethernet, media conversion, and surveillance applications, ensuring robust and consistent performance for demanding industrial projects. Order now for fast delivery and reliable operation.
Order your TT Electronics OPF2412T fiber optic receiver today and ensure dependable high-speed data transmission for your industrial and surveillance projects.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPF2412T?
You can click on the BUY or RFQ button to purchase OPF2412T from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPF2412T?
You can download the OPF2412T datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPF2412T?
TT Electronics - Optek Technology
