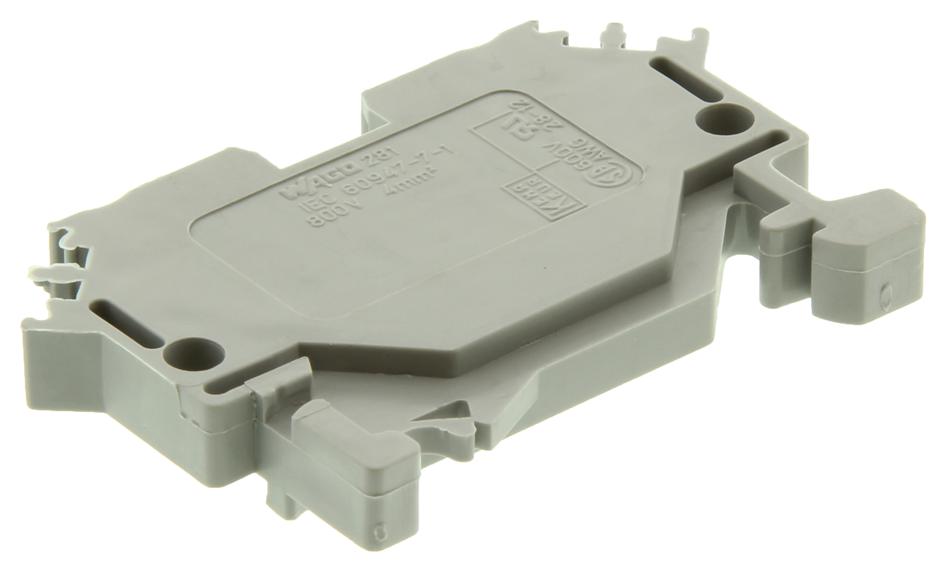

WAGO 281601 2-Conductor Terminal Block
The WAGO 281-601 is a robust and reliable 2-conductor through terminal block, ideal for rail-mounted applications. Its front-entry design simplifies wiring, while the innovative CAGE CLAMP® connection ensures a secure and vibration-resistant connection. Suitable for various industrial control and power distribution systems, this terminal block offers a compact and efficient solution for connecting multiple conductors. It is designed to meet the demands of harsh environments and ensures long-term reliability.
WAGO 281601 2-Conductor Terminal Block Specifications:
- Product Description: 2-Conductor Through Terminal Block
- DIN Rail: for DIN 35 rail
- Entry Type: Front-Entry
- Connection Method: CAGE CLAMP®CONNECTION
- Type: Horizontal
- Packing Unit: 100 pieces
- Cross Section From mm²: 0,08 mm²
- Cross Section To mm²: 4 mm²
- Cross Section From AWG: 28 AWG
- Cross Section To AWG: 12 AWG
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 32 A
- Weight: 7,03 g
- Color: grey
- Wiring Type: Front-entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 29 mm
- Height in inches: 1,14 in
- Width: 6 mm
- Width in inches: 0,236 in
- Depth: 53 mm
- Depth in inches: 2,09 in
- Strip Length From: 9 mm
- Strip Length To: 10 mm
- Strip Length in inches: 0,37 in
- Approval ABS: 05-HG476175/1-PDA
- Approval BBJ: B/12/700/03
- Approval BV: 07436/Co
- Approval CCA: NL5591/1
- Approval CSA: 154112-1505034
- Approval DEMKO: 75942
- Approval Dep.MaE: CS4866N
- Approval DNV: E7570
- Approval GL: 17295-00HH
- Approval KEMA: 2076376.01
- Approval KR: HMB05880-EL001
- Approval LR: 91/20112(E5)
- Approval NEMKO: L92359
- Approval PRS: TE/1718/880590/08
- Approval RMR: 11130002
- Approval SABS: 751/82640
- Approval SABS-EX: e741/85712/W491
- Approval UR: E45172
Buy the 281-601 WAGO 2-Conductor Terminal Block | myMectronic
Purchase the WAGO 281-601 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281601?
You can click on the BUY or RFQ button to purchase 281601 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281601?
You can download the 281601 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281601?
WAGO
