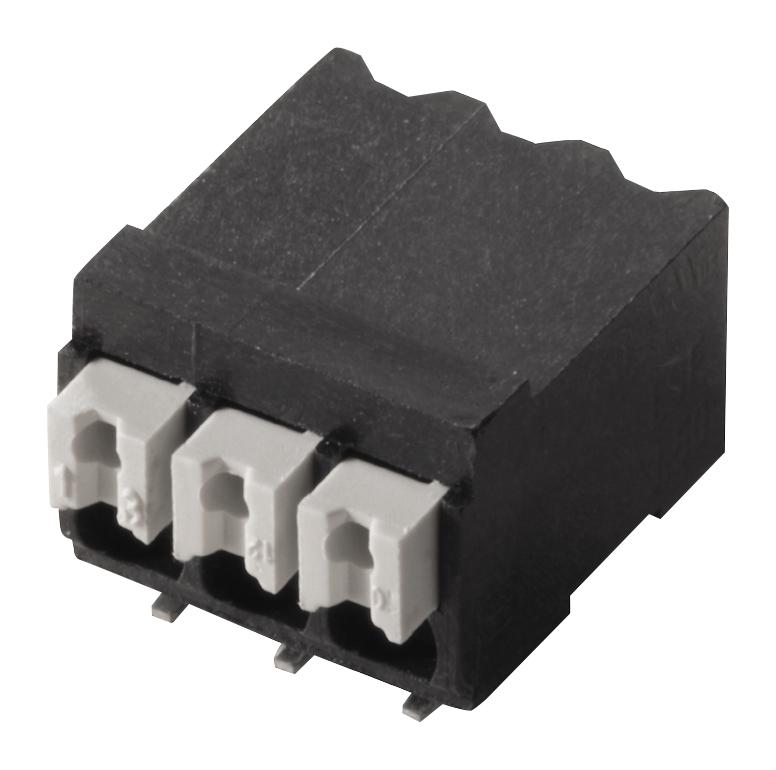

WEIDMULLER 1473570000 SMD PCB Terminal Connector
The Weidmuller LSF-SMD 3.50/09/90 SN BK RL is a PCB terminal designed for fully automatic assembly using reflow soldering. It utilizes PUSH IN wire connections, simplifying the connection process and eliminating the need for tools. The terminal's design allows for easy conductor insertion and slider operation from the same direction (TOP). Suitable for a wide range of applications, this terminal offers a robust and efficient solution for connecting wires to PCBs, particularly in automated manufacturing environments. It is ideal for applications requiring high-volume PCB assembly and reliable wire connections.
WEIDMULLER 1473570000 SMD PCB Terminal Connector Specifications:
- Type: LSF-SMD 3.50/09/90 SN BK RL
- Order No.: 1473570000
- Version: PCB terminal, 3.50 mm, No. of poles: 9, 90°, Black, PUSH IN, Clamping range, max. : 1.5 mm², Tape (Ø 330 mm); Rs = 109- 1012Ω
- GTIN(EAN): 4050118279863
- Quantity: 320pc(s)
- Rated Voltage IEC: 320 V
- Rated Current IEC: 17.5 A
- Conductor Size IEC: 0.2 - 1.5 mm²
- Rated Voltage UL: 300 V
- Rated Current UL: 12 A
- Conductor Size UL: AWG 24 - AWG 16
- Packaging: Tape (Ø 330 mm); Rs = 109- 1012Ω
- Net Weight: 5.806 g
- Pitch: 3.5 mm
- No. of Poles: 9
- Stripping Length: 8 mm
- Contact Material: Copper alloy
- Insulating Material: LCP GF
- Color: Black
- Operating Temperature Max: 120 °C
- Insulation Resistance: ≥ 108Ω
- Flammability Rating: V-0
- Storage Temperature Min: -25 °C
- Storage Temperature Max: 55 °C
