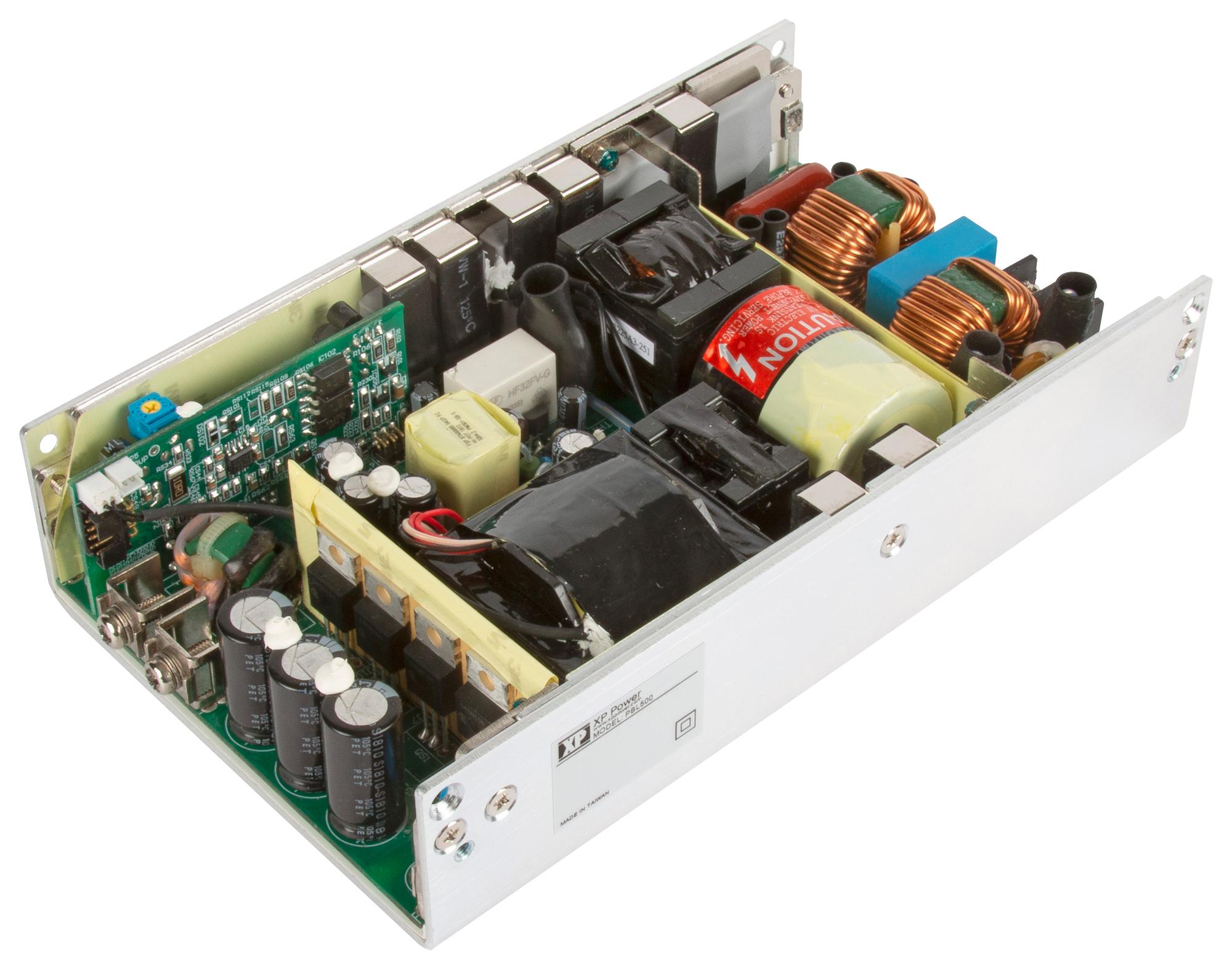

XP POWER PBL500PS36B High Power Power Supply
The PBL500 series combines high-power AC-DC power supplies designed for medical and industrial applications. Delivering 450-500 watts with forced air cooling or 250 watts convection cooled, these units are housed in a compact U-channel package measuring 7.1 x 4.00 x 1.56 inches. They feature BF-rated insulation, remote sensing, power good signals, and operate at altitudes up to 5000 meters. Suitable for medical environments, they comply with safety standards, offering reliable performance with low ripple, high efficiency, and thermal protection, ensuring durability and safety in demanding applications.
XP POWER PBL500PS36B High Power Power Supply Specifications:
- Input Voltage: 80-264 VAC, 63 Hz
- Output Power: 450-500W with forced air, 250W convection
- Output Voltage: 12V to 57V varies per model
- Output Current: up to 20.83A at 12V, 8.94A at 36V
- Dimensions: 7.1 x 4.00 x 1.56 inches (180.34 x 101.6 x 39.62 mm)
- Cooling: Forced air with optional cover and fan, convection cooling version available
- Efficiency: up to 90% at full load
- Protection: Overvoltage, overcurrent, thermal shutdown
- Safety Standards: UL60601-1, CSA, CE, UKCA, Medical-grade approvals
- Isolation: Input to case 4000 VAC, output to case 1500 VAC
- Altitude: Operates up to 5000 meters
- Ripple & Noise: Max 120-570 mV depending on output voltage
- Operating Temperature: -10°C to +70°C with derating
- Materials: Aluminum chassis, optional fan assembly
- Certifications: UL, CSA, CE, Class B conducted and radiated emissions
- Environmental: Non-condensing humidity, -40°C to +85°C storage
Buy the Buy XP Power PBL500 Part Number PBL500PS36B Online
Secure the high-performance power supply online today. Designed for demanding medical and industrial applications, this unit provides up to 500W with excellent efficiency, safety, and durability. Its compact design, multiple safety protections, and compliance with international standards make it perfect for your critical projects. Easy to install and maintain, ensuring smooth operation in harsh environments. Purchase now to ensure your systems operate reliably with top-grade power solutions, quick delivery, and excellent customer support.
Buy XP Power PBL500 power supply now and experience unmatched reliability and performance in medical and industrial environments.
Frequently Asked Questions
Where can I buy XP POWER PBL500PS36B?
You can click on the BUY or RFQ button to purchase PBL500PS36B from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBL500PS36B?
You can download the PBL500PS36B datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBL500PS36B?
XP POWER
