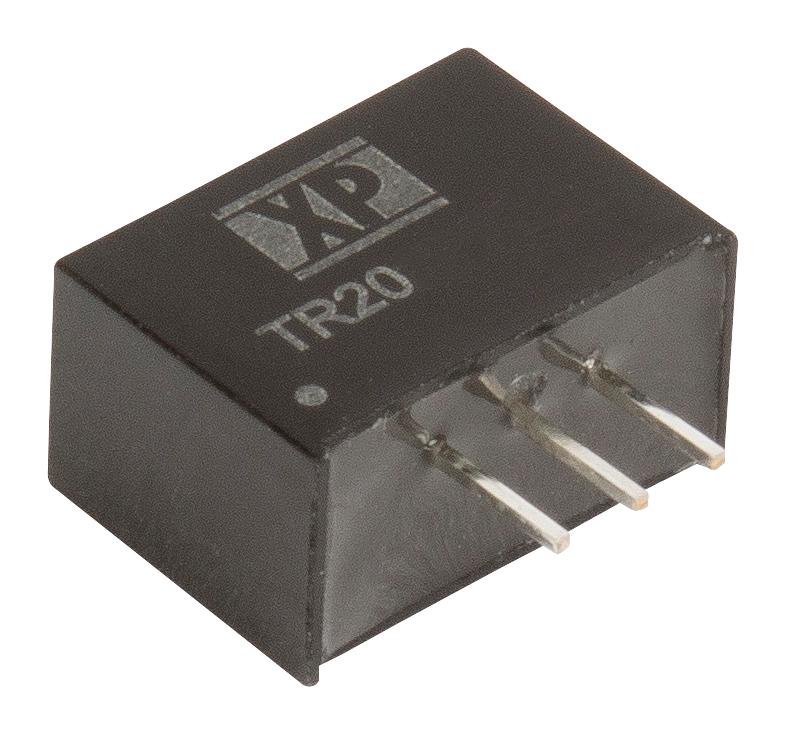

XP POWER TR2024S15 Switching Regulator
The TR20 series offers a compact, high-efficiency switching regulator designed for versatile power management applications. Operating from a wide input voltage of up to 36V, it provides regulated single outputs from 1.2V to 15V DC with efficiencies reaching 96%. Crafted in a SIP3 package and non-isolated, it ensures reliable performance with features like short circuit protection, low standby current of only 1mA, and compliance with Class B emissions. Suitable for industrial, embedded, and control systems, this regulator guarantees durability and minimal external circuitry. Its robust design and efficiency make it ideal for demanding environments where stable voltage regulation is essential.
XP POWER TR2024S15 Switching Regulator Specifications:
- Input Voltage Range: 3V to 36V DC
- Output Voltage: 1.2V to 15V DC (regulated single output)
- Maximum Efficiency: 96%
- Package Type: SIP3
- Isolation: Non-isolated
- Efficiency: Up to 96%
- Standby Input Current: 1mA
- Short Circuit Protection: Yes
- Input Reflected Ripple: 35 mA pk-pk
- Operating Temperature Range: -40°C to +100°C
- Dimensions: 0.55 x 0.30 x 0.40 inch (14.0 x 7.5 x 10.1 mm)
- Switching Frequency: 1200/40 kHz
- Maximum Load: Up to several amps depending on model
- Certifications: UL94V-0 (case), complies with EMI standards
- MTBF: >2.6 million hours
Buy the XP Power Series TR20 Switching Regulator: TR2024S15
Purchase XP Power TR2024S15 today and experience superior power regulation with high efficiency up to 96%. Designed for stability and durability, this compact regulator operates from 3V to 36V DC inputs and delivers regulated outputs from 1.2V to 15V DC. Its SIP3 package ensures reliable operation in industrial, embedded, and control systems. Features like low standby current of just 1mA, short circuit protection, and compliance with emissions standards provide confidence in long-term use. Order online to ensure quick delivery and seamless integration into your projects.
Get XP Power TR2024S15 today—built for precision, high efficiency, and long-lasting durability in demanding electronic applications.
