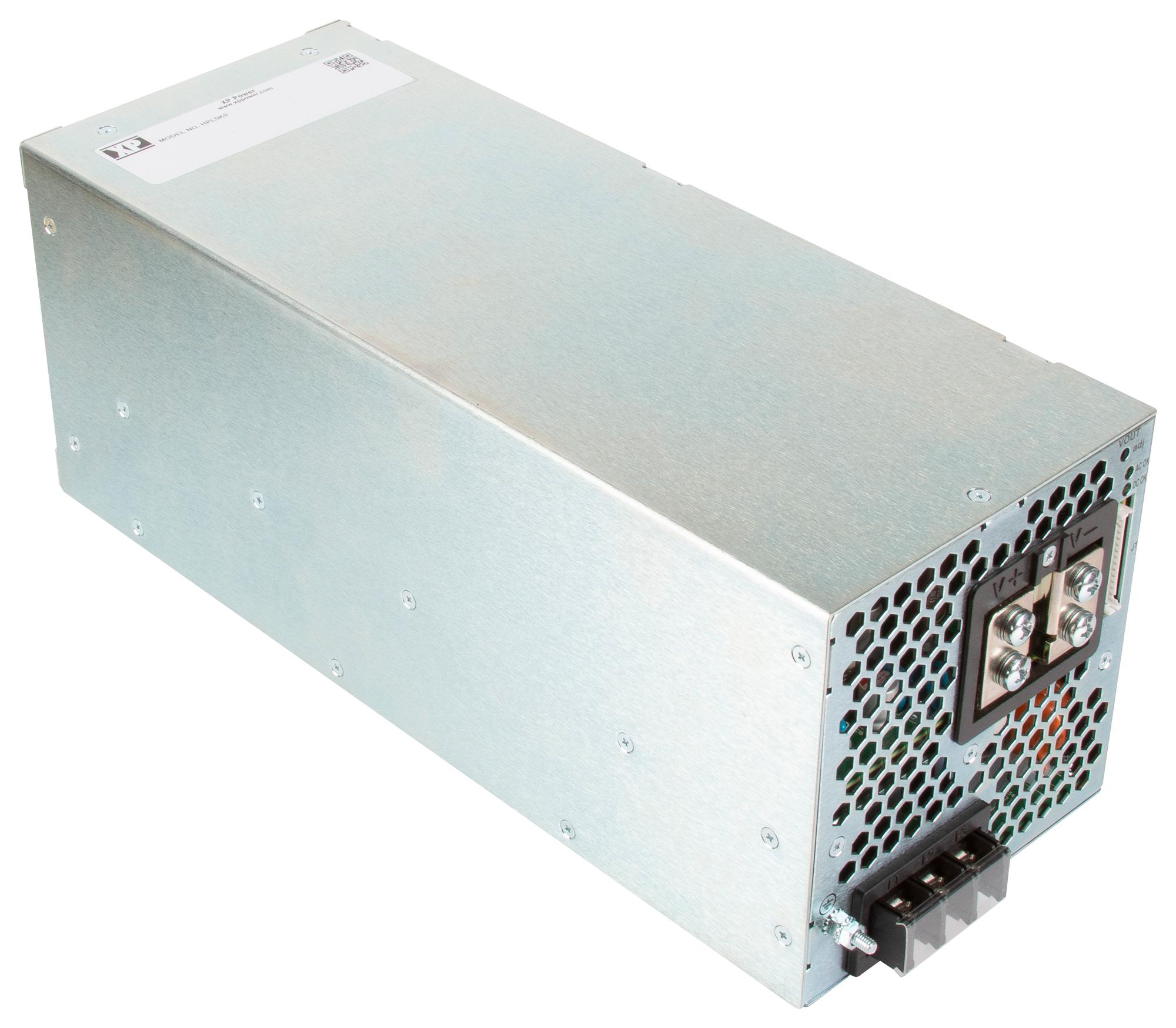

XP POWER HPL5K0TS060 Programmable Power Supply
The HPL5K0 series offers highly flexible power supplies with programmable output voltage and current, supporting user-defined signals, warnings, and alarms. It can be configured via voltage, I²C PMBus, RS485, and CANopen interfaces, providing high efficiency and a compact 5 kW chassis mount form factor. Capable of operating in both constant voltage and constant current modes, it includes options for RS232 or UART communication. Measuring 13.0" x 5.0" x 5.0", the unit features active current sharing, remote on/off, remote sensing, and a power OK indicator. A 5V/2A standby output is available when mains power is supplied. It supports three-phase input (180-264VAC) with earth wiring, high efficiency, programmable output voltage (0-105%), and current (0-110%). Additional features include parallel operation capability, both analog and digital interfaces, comprehensive signals and controls, a graphical user interface (GUI), and a 3-year warranty. Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. The product is exempt from discounts.
XP POWER HPL5K0TS060 Programmable Power Supply Specifications:
- Input Voltage: 180-264 VAC, 3-phase with earth wiring
- Input Frequency: 63 Hz
- Power Factor: 0.98
- Efficiency: up to 93%
- Output Voltage: 0-105% of set point, programmable
- Output Current: 0-110% of rated current, programmable
- Dimensions: 13.0" x 5.0" x 5.0" (330.2 x 127.0 x 127.0 mm)
- Peak Power Density: 1.38 W/in³
- Regulation: Line and load regulation within specified limits
- Ripple & Noise: Measured under load conditions, compliant with standards
- Protection: Overvoltage, overcurrent, overtemperature, short circuit protections
- Communication Options: PMBus, CANopen, RS485, optional RS232/UART
- Features: Active current sharing, remote on/off, remote sense, power OK signal
- Operating Temperature: -20°C to +70°C, derated at higher temperatures
- Cooling: Force-cooled with intelligent fan speed control
- Weight: approx. 12.5 lbs (5.7 kg)
Buy the XP Power HPL5K0 – Reliable High Power Density Power Supply for Industrial Applications
Experience the versatility and reliability of the XP Power HPL5K0 series. Engineered for industrial, medical, and semiconductor applications, this power supply offers high efficiency, programmable voltage and current, and advanced communication options including PMBus, CANopen, and RS485. Its compact 13" x 5" x 5" design supports parallel operation, remote sensing, and active current sharing, making it ideal for complex systems requiring flexible power management. With a 3-year warranty, purchase online today and enhance your system’s performance with trusted power technology.
Order your XP Power HPL5K0 series high efficiency power supply today and ensure your projects benefit from dependable performance in demanding environments.
Frequently Asked Questions
Where can I buy XP POWER HPL5K0TS060?
You can click on the BUY or RFQ button to purchase HPL5K0TS060 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part HPL5K0TS060?
You can download the HPL5K0TS060 datasheet or visit the XP POWER website for support.
Who is the manufacturer of HPL5K0TS060?
XP POWER
