XP POWER IES0124S09 Single-Output DC-DC Power Supply
The IES01 series is a single-output DC-DC power supply designed to isolate voltage rails in distributed power systems, including analog, digital, data, and relay circuits. It features an unregulated 9V output with a 24V input voltage, and an input voltage range of ±10%. The power supply comes in an SMD8 DIP package with an industry-standard pinout. It offers continuous short circuit protection, UL62368-1 safety approvals, and operates efficiently from -40°C to +105°C, maintaining full load performance up to +100°C. The product is backed by a 3-year warranty.
XP POWER IES0124S09 Single-Output DC-DC Power Supply Specifications:
- Input Voltage: 26.4V to 48V
- Output Voltage: 9V
- Output Current: 12mA at minimum, 241mA at maximum
- Efficiency: Up to 83%
- Isolation: 1500/3000VAC
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.52 inches x 0.335 inches x 0.285 inches (13.2mm x 8.5mm x 7.25mm)
- Maximum Capacitive Load: 1000pF to 2400uF depending on model
- Safety Approvals: UL62368-1
- Input Ripple: 15/30mApk-pk
- Switching Frequency: 260-278kHz
- Water Wash: Non-soaking water wash permitted
- Weight: 0.003 lbs (1.4g)
- Pin Material: Phosphor bronze, solder coated

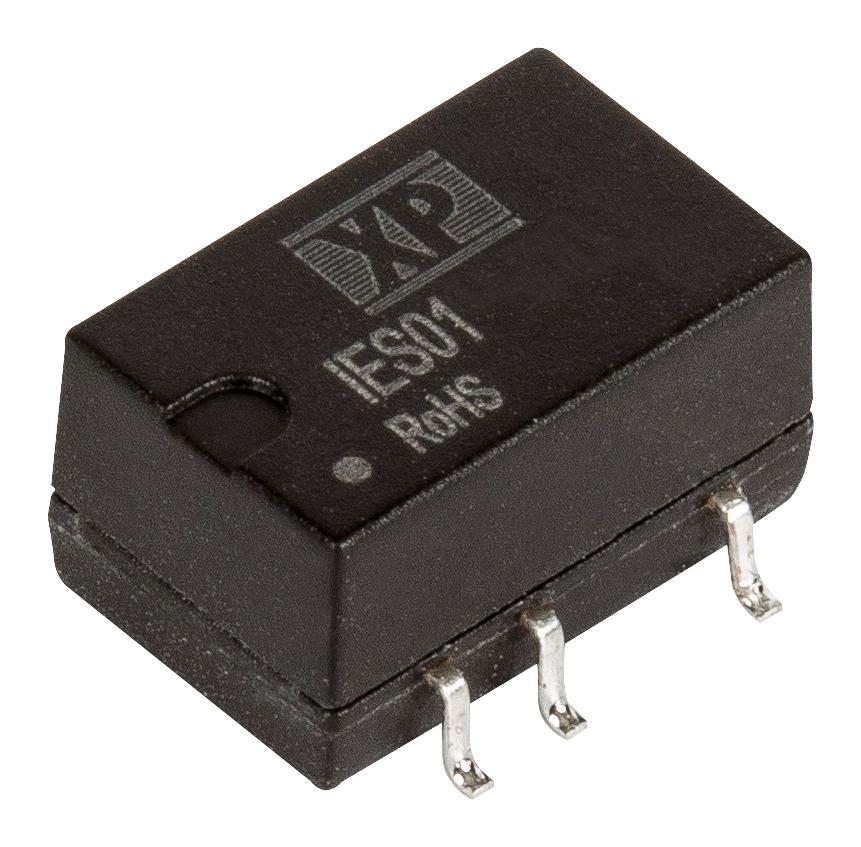

Buy the XP Power Series IESO1 9V DC-DC Power Supply: IES0124S09
Enhance your power system with the XP Power IESO1 series single-output DC-DC power supply. Designed for isolation in complex systems, it features advanced safety approval UL62368-1, operates efficiently from -40°C to +105°C, and offers continuous short circuit protection. Compact with dimensions of just 0.52 x 0.335 x 0.285 inches, it delivers reliable performance at varied input voltages. Backed by a 3-year warranty, it ensures durability and safety for your industrial, communication, or data applications. Purchase online today to ensure high-performance power isolation in your critical systems.
Buy XP Power IES0124S09 now and experience unmatched reliability and performance in distributed power solutions.
Frequently Asked Questions
Where can I buy XP POWER IES0124S09?
You can click on the BUY or RFQ button to purchase IES0124S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IES0124S09?
You can download the IES0124S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IES0124S09?
XP POWER
