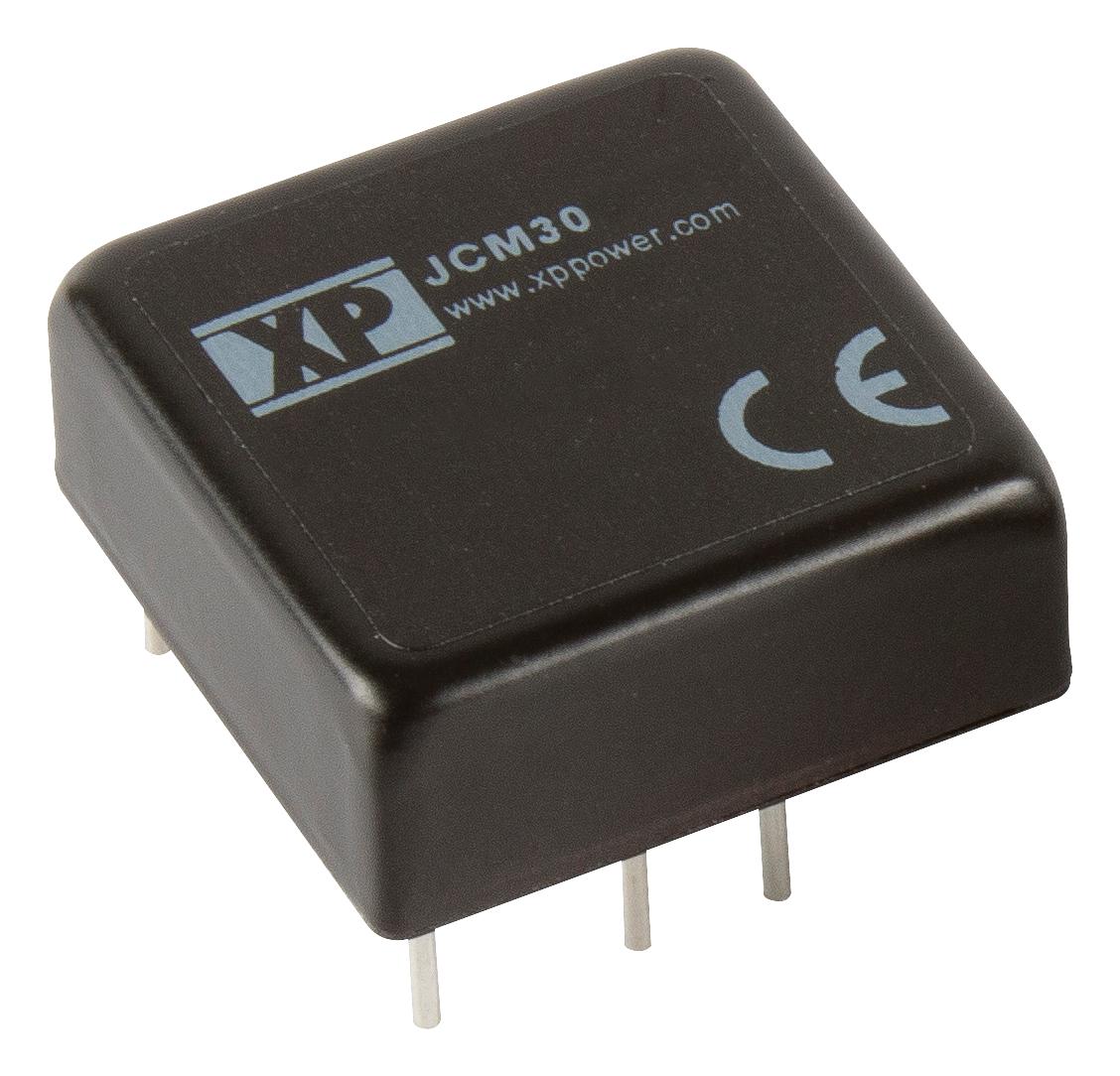

XP POWER JCM3048S3V3 DC-DC Power Module
The JCM30 series power supply offers a versatile range of 15 to 30-watt modules, packaged in an industry-standard 1" x 1" metal case. These supplies feature a 2:1 input voltage range, accepting nominal 12V, 24V, or 48V DC sources. They provide both single and dual outputs, with single models available at 3.3V, 5V, 12V, and 15V DC, and dual models at ±12V and ±15V DC. The series delivers a high power density of 73 W/in³, with an isolation voltage of 1600 VDC and output regulation within ±0.5% for line and load variations, and ±1% load regulation for dual outputs. An adjustable output trim of ±10% is available via a trim resistor. The modules operate reliably over a wide temperature range from -40°C to 100°C, with derating above 55°C, extendable to 85°C with optional heatsinks. All models feature remote on/off control and meet stringent EMI standards with external filtering. Suitable for power management and industrial applications, the series ensures full load operation at 55°C and adheres to high industry standards for quality and efficiency.
XP POWER JCM3048S3V3 DC-DC Power Module Specifications:
- Power Range: 15W to 30W
- Input Voltage Range: 12V to 48V DC (2:1 range)
- Output Power Density: 73 W/in³
- Output Voltages: 3.3V, 5V, 12V, 15V, ±12V, ±15V
- Isolation Voltage: 1600 VDC
- Line Regulation: ±0.5%
- Load Regulation: ±0.5% for single output, ±1% for dual outputs
- Output Trim Adjustment: ±10%
- Efficiency: Up to 90%
- Operating Temperature: -40°C to 100°C, derating above 55°C
- Humidity: 95% RH non-condensing
- MTBF: 370,000 hours
- Remote On/Off: Yes
- Certifications: UL, UL60950-1, CSA
Buy the Buy XP Power JCM30 Series Part Number JCM3048S3V3 Online
Secure your high-quality XP Power JCM30 series DC-DC power modules online today. These compact, reliable power supplies with wide input ranges and dual outputs offer exceptional efficiency and thermal performance. Ideal for industrial, automation, and power management applications, they operate from -40°C to 100°C with optional heatsinks for wider temperature tolerance. Featuring remote on/off, high isolation, and adjustable output trim, order now to ensure your projects benefit from dependable power solutions that meet industry standards for safety and performance.
Order your XP Power JCM30 Series power module today and enhance your power management solutions with reliable, high-efficiency DC-DC conversion.
Frequently Asked Questions
Where can I buy XP POWER JCM3048S3V3?
You can click on the BUY or RFQ button to purchase JCM3048S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JCM3048S3V3?
You can download the JCM3048S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JCM3048S3V3?
XP POWER
